Description

  Base support for FSMs.

Author: Juan-Antonio Fernandez-Madrigal. http://jafma.net

Date: 2019

Copyright: Copyright (c), Individual contributors, see AUTHORS file. This program is free for non-commercial uses. For the rest, contact the AUTHORS. Please include a mention in your programs to the main developer and the web page of the library.

Collaboration diagram for Finite State Machines:

Classes
class	elementa::adts::BaseFSM
	Common functionality for any FSM. More...

class	elementa::adts::FSM< Obs >
	Base interface for FSMs with a given observation type. More...

class	elementa::adts::BaseTextFSM
	Shortcut for FSMs that work with chars. More...

class	elementa::adts::CharFSM
	A FSM that recognizes only a given character. More...

class	elementa::adts::SeparatorsFSM
	A FSM that recognizes sequences of separator characters. More...

class	elementa::adts::IdentifierFSM
	A FSM that recognizes a standard identifier in text. More...

class	elementa::adts::KeywordFSM
	A FSM that recognizes some fixed, short (shorter than 255 chars) string. More...

class	elementa::adts::CommentsFSM
	A FSM that recognizes uni- or multi-line comments. More...

class	elementa::adts::IntegerTextFSM
	A FSM that recognizes an integer number from text. More...

class	elementa::adts::NumberTextFSM
	A FSM that recognizes a real or integer number from a decimal text. More...

Class Documentation

◆ elementa::adts::BaseFSM

class elementa::adts::BaseFSM

Common functionality for any FSM.

A FSM is formally a directed graph where there is an initial ("reset") edge from no specified vertex, and some ending vertices. Each edge recognizes some observation(s), and may lead to the same vertex or to another. Even while being in an ending vertex, there may be edges that continue recognizing observations, or that lead to a non-ending vertex.

Note: - Do not derive from this class to implement the virtual methods; use the FSM<> template instead.

See also: FSM.

Definition at line 66 of file fsms.h.

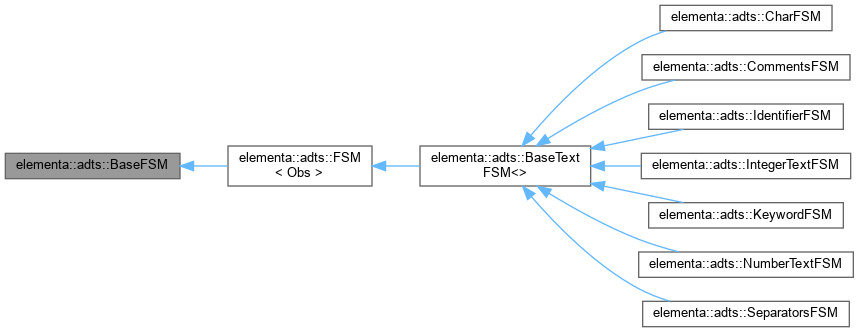

Inheritance diagram for elementa::adts::BaseFSM:

[legend]

Public Types
Types, consts, etc.
using	Num = size_t
	To represent a number of FSMs. More...

Public Member Functions
Constructors
virtual	~BaseFSM (void)=default
	Just for polymorphic deletions.

Methods
virtual bool	atEnd (void) const =0
	Must return TRUE if the current state is an absorbing/final one. More...

virtual void	reset (void)=0
	Must set the FSM to a preliminary state when it has not been fed yet. More...

void	resetCheck (void)
	Reset checking the post-condition that the FSM does not go to an ending. More...

virtual std::string	to_string (void) const
	Return a text representation of the FSM. Can be overriden. More...

Member Typedef Documentation

◆ Num

using elementa::adts::BaseFSM::Num = size_t

To represent a number of FSMs.

Definition at line 74 of file fsms.h.

Member Function Documentation

◆ atEnd()

virtual bool elementa::adts::BaseFSM::atEnd ( void ) const

pure virtual

Must return TRUE if the current state is an absorbing/final one.

After a reset, the fsm must not be in an ending state.

Note: - Some FSMs can change from ending state to non-ending state or vice versa while consuming obsrevations, and that is ok.

See also: resetCheck()

Implemented in elementa::adts::CharFSM, elementa::adts::SeparatorsFSM, elementa::adts::IdentifierFSM, elementa::adts::KeywordFSM, elementa::adts::CommentsFSM, elementa::adts::IntegerTextFSM, and elementa::adts::NumberTextFSM.

Referenced by resetCheck(), and to_string().

◆ reset()

virtual void elementa::adts::BaseFSM::reset ( void )

pure virtual

Must set the FSM to a preliminary state when it has not been fed yet.

Therefore, after this method, atEnd() must return FALSE. This method should be called from the constructors of derived FSMs to prepare them for reading observations.

See also: resetCheck()

Implemented in elementa::adts::CharFSM, elementa::adts::SeparatorsFSM, elementa::adts::IdentifierFSM, elementa::adts::KeywordFSM, elementa::adts::CommentsFSM, elementa::adts::IntegerTextFSM, and elementa::adts::NumberTextFSM.

Referenced by resetCheck().

◆ resetCheck()

void elementa::adts::BaseFSM::resetCheck ( void )

inline

Reset checking the post-condition that the FSM does not go to an ending.

See also: reset(), atEnd().

Definition at line 107 of file fsms.h.

References atEnd(), ELE_CODE_INVSTATE, reset(), and to_string().

◆ to_string()

virtual std::string elementa::adts::BaseFSM::to_string ( void ) const

inlinevirtual

Return a text representation of the FSM. Can be overriden.

Reimplemented in elementa::adts::CharFSM, elementa::adts::SeparatorsFSM, elementa::adts::IdentifierFSM, elementa::adts::KeywordFSM, elementa::adts::CommentsFSM, elementa::adts::IntegerTextFSM, and elementa::adts::NumberTextFSM.

Definition at line 114 of file fsms.h.

References atEnd(), elementa::base::kYesNoCString(), and elementa::base::to_number().

Referenced by resetCheck(), elementa::adts::CharFSM::to_string(), elementa::adts::SeparatorsFSM::to_string(), elementa::adts::IdentifierFSM::to_string(), elementa::adts::KeywordFSM::to_string(), elementa::adts::CommentsFSM::to_string(), elementa::adts::IntegerTextFSM::to_string(), and elementa::adts::NumberTextFSM::to_string().

◆ elementa::adts::FSM

class elementa::adts::FSM

template<typename Obs = char>
class elementa::adts::FSM< Obs >

Base interface for FSMs with a given observation type.

Template Parameters

Obs	is the type of the observations that the machine reads. It must be a simple type.

See also: ShortWordFSM.

Definition at line 137 of file fsms.h.

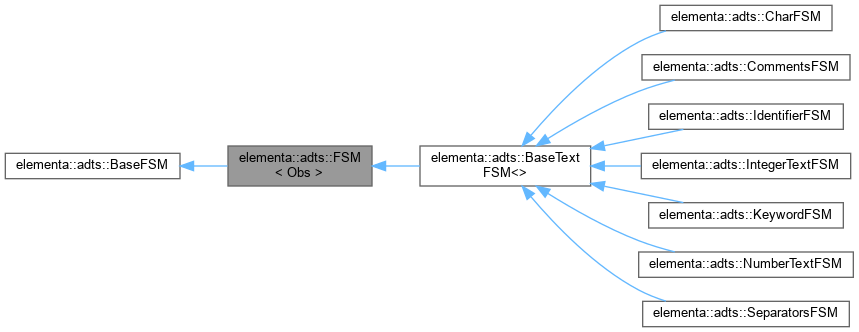

Inheritance diagram for elementa::adts::FSM< Obs >:

[legend]

Collaboration diagram for elementa::adts::FSM< Obs >:

[legend]

Public Types
using	Ptr = std::shared_ptr< FSM >
	Pointer to a FSM that consumes observations of type Obs. More...

Types, consts, etc.
using	Num = size_t
	To represent a number of FSMs. More...

Public Member Functions
virtual bool	consume (Obs o)=0
	Must consume the given observation and change state if necessary. More...

Methods
virtual bool	atEnd (void) const =0
	Must return TRUE if the current state is an absorbing/final one. More...

virtual void	reset (void)=0
	Must set the FSM to a preliminary state when it has not been fed yet. More...

void	resetCheck (void)
	Reset checking the post-condition that the FSM does not go to an ending. More...

virtual std::string	to_string (void) const
	Return a text representation of the FSM. Can be overriden. More...

Member Typedef Documentation

◆ Ptr

template<typename Obs = char>

using elementa::adts::FSM< Obs >::Ptr = std::shared_ptr<FSM>

Pointer to a FSM that consumes observations of type Obs.

Definition at line 142 of file fsms.h.

◆ Num

using elementa::adts::BaseFSM::Num = size_t

inherited

To represent a number of FSMs.

Definition at line 74 of file fsms.h.

Member Function Documentation

◆ consume()

template<typename Obs = char>

virtual bool elementa::adts::FSM< Obs >::consume ( Obs o )

pure virtual

Must consume the given observation and change state if necessary.

Must return TRUE if the observation can be consumed in the current state, either changing state or not. Must do nothing and return FALSE if it cannot consume that observation (it may change to end state if it is not there already).

◆ atEnd()

virtual bool elementa::adts::BaseFSM::atEnd ( void ) const

pure virtualinherited

Must return TRUE if the current state is an absorbing/final one.

After a reset, the fsm must not be in an ending state.

Note: - Some FSMs can change from ending state to non-ending state or vice versa while consuming obsrevations, and that is ok.

See also: resetCheck()

Implemented in elementa::adts::CharFSM, elementa::adts::SeparatorsFSM, elementa::adts::IdentifierFSM, elementa::adts::KeywordFSM, elementa::adts::CommentsFSM, elementa::adts::IntegerTextFSM, and elementa::adts::NumberTextFSM.

Referenced by elementa::adts::BaseFSM::resetCheck(), and elementa::adts::BaseFSM::to_string().

◆ reset()

virtual void elementa::adts::BaseFSM::reset ( void )

pure virtualinherited

Must set the FSM to a preliminary state when it has not been fed yet.

Therefore, after this method, atEnd() must return FALSE. This method should be called from the constructors of derived FSMs to prepare them for reading observations.

See also: resetCheck()

Implemented in elementa::adts::CharFSM, elementa::adts::SeparatorsFSM, elementa::adts::IdentifierFSM, elementa::adts::KeywordFSM, elementa::adts::CommentsFSM, elementa::adts::IntegerTextFSM, and elementa::adts::NumberTextFSM.

Referenced by elementa::adts::BaseFSM::resetCheck().

◆ resetCheck()

void elementa::adts::BaseFSM::resetCheck ( void )

inlineinherited

Reset checking the post-condition that the FSM does not go to an ending.

See also: reset(), atEnd().

Definition at line 107 of file fsms.h.

References elementa::adts::BaseFSM::atEnd(), ELE_CODE_INVSTATE, elementa::adts::BaseFSM::reset(), and elementa::adts::BaseFSM::to_string().

◆ to_string()

virtual std::string elementa::adts::BaseFSM::to_string ( void ) const

inlinevirtualinherited

Return a text representation of the FSM. Can be overriden.

Reimplemented in elementa::adts::CharFSM, elementa::adts::SeparatorsFSM, elementa::adts::IdentifierFSM, elementa::adts::KeywordFSM, elementa::adts::CommentsFSM, elementa::adts::IntegerTextFSM, and elementa::adts::NumberTextFSM.

Definition at line 114 of file fsms.h.

References elementa::adts::BaseFSM::atEnd(), elementa::base::kYesNoCString(), and elementa::base::to_number().

Referenced by elementa::adts::BaseFSM::resetCheck(), elementa::adts::CharFSM::to_string(), elementa::adts::SeparatorsFSM::to_string(), elementa::adts::IdentifierFSM::to_string(), elementa::adts::KeywordFSM::to_string(), elementa::adts::CommentsFSM::to_string(), elementa::adts::IntegerTextFSM::to_string(), and elementa::adts::NumberTextFSM::to_string().

◆ elementa::adts::BaseTextFSM

class elementa::adts::BaseTextFSM

Shortcut for FSMs that work with chars.

Definition at line 159 of file fsms.h.

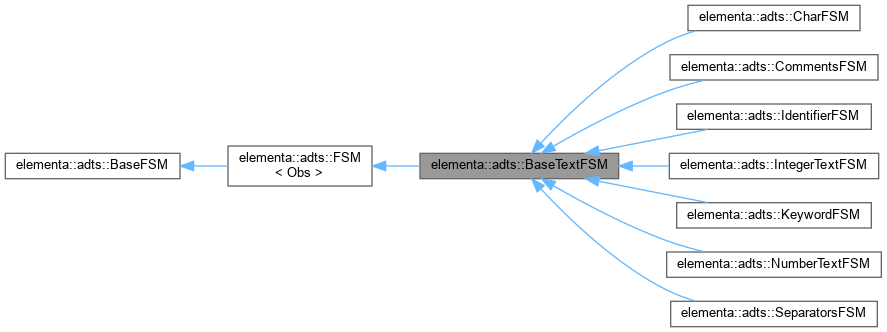

Inheritance diagram for elementa::adts::BaseTextFSM:

[legend]

Collaboration diagram for elementa::adts::BaseTextFSM:

[legend]

Public Types
using	Ptr = std::shared_ptr< FSM >
	Pointer to a FSM that consumes observations of type Obs. More...

Types, consts, etc.
using	Num = size_t
	To represent a number of FSMs. More...

Public Member Functions
	BaseTextFSM (bool casesensitive=true)
	Constructor. More...

virtual bool	consume (Obs o)=0
	Must consume the given observation and change state if necessary. More...

Methods
virtual bool	atEnd (void) const =0
	Must return TRUE if the current state is an absorbing/final one. More...

virtual void	reset (void)=0
	Must set the FSM to a preliminary state when it has not been fed yet. More...

void	resetCheck (void)
	Reset checking the post-condition that the FSM does not go to an ending. More...

virtual std::string	to_string (void) const
	Return a text representation of the FSM. Can be overriden. More...

Protected Member Functions
char	caseChar (char c)

Member Typedef Documentation

◆ Ptr

template<typename Obs = char>

using elementa::adts::FSM< Obs >::Ptr = std::shared_ptr<FSM>

inherited

Pointer to a FSM that consumes observations of type Obs.

Definition at line 142 of file fsms.h.

◆ Num

using elementa::adts::BaseFSM::Num = size_t

inherited

To represent a number of FSMs.

Definition at line 74 of file fsms.h.

Constructor & Destructor Documentation

◆ BaseTextFSM()

elementa::adts::BaseTextFSM::BaseTextFSM ( bool casesensitive = true )

inline

Constructor.

Parameters

casesensitive is a flag available to derived classes, that should use it adequately when feeding with observations coming from the input channel (for instance, using the caseChar() method).

Definition at line 167 of file fsms.h.

Member Function Documentation

◆ caseChar()

char elementa::adts::BaseTextFSM::caseChar ( char c )

inlineprotected

Definition at line 172 of file fsms.h.

◆ consume()

template<typename Obs = char>

virtual bool elementa::adts::FSM< Obs >::consume ( Obs o )

pure virtualinherited

Must consume the given observation and change state if necessary.

Must return TRUE if the observation can be consumed in the current state, either changing state or not. Must do nothing and return FALSE if it cannot consume that observation (it may change to end state if it is not there already).

◆ atEnd()

virtual bool elementa::adts::BaseFSM::atEnd ( void ) const

pure virtualinherited

Must return TRUE if the current state is an absorbing/final one.

After a reset, the fsm must not be in an ending state.

Note: - Some FSMs can change from ending state to non-ending state or vice versa while consuming obsrevations, and that is ok.

See also: resetCheck()

Implemented in elementa::adts::CharFSM, elementa::adts::SeparatorsFSM, elementa::adts::IdentifierFSM, elementa::adts::KeywordFSM, elementa::adts::CommentsFSM, elementa::adts::IntegerTextFSM, and elementa::adts::NumberTextFSM.

Referenced by elementa::adts::BaseFSM::resetCheck(), and elementa::adts::BaseFSM::to_string().

◆ reset()

virtual void elementa::adts::BaseFSM::reset ( void )

pure virtualinherited

Must set the FSM to a preliminary state when it has not been fed yet.

Therefore, after this method, atEnd() must return FALSE. This method should be called from the constructors of derived FSMs to prepare them for reading observations.

See also: resetCheck()

Implemented in elementa::adts::CharFSM, elementa::adts::SeparatorsFSM, elementa::adts::IdentifierFSM, elementa::adts::KeywordFSM, elementa::adts::CommentsFSM, elementa::adts::IntegerTextFSM, and elementa::adts::NumberTextFSM.

Referenced by elementa::adts::BaseFSM::resetCheck().

◆ resetCheck()

void elementa::adts::BaseFSM::resetCheck ( void )

inlineinherited

Reset checking the post-condition that the FSM does not go to an ending.

See also: reset(), atEnd().

Definition at line 107 of file fsms.h.

References elementa::adts::BaseFSM::atEnd(), ELE_CODE_INVSTATE, elementa::adts::BaseFSM::reset(), and elementa::adts::BaseFSM::to_string().

◆ to_string()

virtual std::string elementa::adts::BaseFSM::to_string ( void ) const

inlinevirtualinherited

Return a text representation of the FSM. Can be overriden.

Reimplemented in elementa::adts::CharFSM, elementa::adts::SeparatorsFSM, elementa::adts::IdentifierFSM, elementa::adts::KeywordFSM, elementa::adts::CommentsFSM, elementa::adts::IntegerTextFSM, and elementa::adts::NumberTextFSM.

Definition at line 114 of file fsms.h.

References elementa::adts::BaseFSM::atEnd(), elementa::base::kYesNoCString(), and elementa::base::to_number().

Referenced by elementa::adts::BaseFSM::resetCheck(), elementa::adts::CharFSM::to_string(), elementa::adts::SeparatorsFSM::to_string(), elementa::adts::IdentifierFSM::to_string(), elementa::adts::KeywordFSM::to_string(), elementa::adts::CommentsFSM::to_string(), elementa::adts::IntegerTextFSM::to_string(), and elementa::adts::NumberTextFSM::to_string().

◆ elementa::adts::CharFSM

class elementa::adts::CharFSM

A FSM that recognizes only a given character.

Definition at line 192 of file fsms.h.

Inheritance diagram for elementa::adts::CharFSM:

[legend]

Collaboration diagram for elementa::adts::CharFSM:

[legend]

Public Types
using	Ptr = std::shared_ptr< FSM >
	Pointer to a FSM that consumes observations of type Obs. More...

Types, consts, etc.
using	Num = size_t
	To represent a number of FSMs. More...

Public Member Functions
	CharFSM (char c)
	Constructor. More...

void	reset (void)
	Must set the FSM to a preliminary state when it has not been fed yet. More...

bool	atEnd (void) const
	Must return TRUE if the current state is an absorbing/final one. More...

bool	consume (char o)

char	character (void) const noexcept
	Return the character this fsm is able to recognize. More...

std::string	to_string (void) const
	Return a text representation of the FSM. Can be overriden. More...

virtual bool	consume (Obs o)=0
	Must consume the given observation and change state if necessary. More...

Methods
void	resetCheck (void)
	Reset checking the post-condition that the FSM does not go to an ending. More...

Protected Member Functions
char	caseChar (char c)

Member Typedef Documentation

◆ Ptr

template<typename Obs = char>

using elementa::adts::FSM< Obs >::Ptr = std::shared_ptr<FSM>

inherited

Pointer to a FSM that consumes observations of type Obs.

Definition at line 142 of file fsms.h.

◆ Num

using elementa::adts::BaseFSM::Num = size_t

inherited

To represent a number of FSMs.

Definition at line 74 of file fsms.h.

Constructor & Destructor Documentation

◆ CharFSM()

elementa::adts::CharFSM::CharFSM ( char c )

inline

Constructor.

Parameters

c	is the character to recognize.

Definition at line 198 of file fsms.h.

References reset().

Member Function Documentation

◆ reset()

void elementa::adts::CharFSM::reset ( void )

inlinevirtual

Must set the FSM to a preliminary state when it has not been fed yet.

Therefore, after this method, atEnd() must return FALSE. This method should be called from the constructors of derived FSMs to prepare them for reading observations.

See also: resetCheck()

Implements elementa::adts::BaseFSM.

Definition at line 200 of file fsms.h.

Referenced by CharFSM().

◆ atEnd()

bool elementa::adts::CharFSM::atEnd ( void ) const

inlinevirtual

Must return TRUE if the current state is an absorbing/final one.

After a reset, the fsm must not be in an ending state.

Note: - Some FSMs can change from ending state to non-ending state or vice versa while consuming obsrevations, and that is ok.

See also: resetCheck()

Implements elementa::adts::BaseFSM.

Definition at line 201 of file fsms.h.

◆ consume() [1/2]

bool elementa::adts::CharFSM::consume ( char o )

inline

Definition at line 203 of file fsms.h.

◆ character()

char elementa::adts::CharFSM::character ( void ) const

inlinenoexcept

Return the character this fsm is able to recognize.

Definition at line 207 of file fsms.h.

◆ to_string()

std::string elementa::adts::CharFSM::to_string ( void ) const

inlinevirtual

Return a text representation of the FSM. Can be overriden.

Reimplemented from elementa::adts::BaseFSM.

Definition at line 209 of file fsms.h.

References elementa::adts::BaseFSM::to_string().

◆ caseChar()

char elementa::adts::BaseTextFSM::caseChar ( char c )

inlineprotectedinherited

Definition at line 172 of file fsms.h.

◆ consume() [2/2]

template<typename Obs = char>

virtual bool elementa::adts::FSM< Obs >::consume ( Obs o )

pure virtualinherited

Must consume the given observation and change state if necessary.

Must return TRUE if the observation can be consumed in the current state, either changing state or not. Must do nothing and return FALSE if it cannot consume that observation (it may change to end state if it is not there already).

◆ resetCheck()

void elementa::adts::BaseFSM::resetCheck ( void )

inlineinherited

Reset checking the post-condition that the FSM does not go to an ending.

See also: reset(), atEnd().

Definition at line 107 of file fsms.h.

References elementa::adts::BaseFSM::atEnd(), ELE_CODE_INVSTATE, elementa::adts::BaseFSM::reset(), and elementa::adts::BaseFSM::to_string().

◆ elementa::adts::SeparatorsFSM

class elementa::adts::SeparatorsFSM

A FSM that recognizes sequences of separator characters.

This FSM consumes observations while they correspond to separators. Reaches end states whenever a separator is consumed.

See also: FSM.

Definition at line 230 of file fsms.h.

Inheritance diagram for elementa::adts::SeparatorsFSM:

[legend]

Collaboration diagram for elementa::adts::SeparatorsFSM:

[legend]

Public Types
using	Ptr = std::shared_ptr< FSM >
	Pointer to a FSM that consumes observations of type Obs. More...

Types, consts, etc.
using	Num = size_t
	To represent a number of FSMs. More...

Public Member Functions
	SeparatorsFSM (const std::string &seps="\n\t \f\r\v\x00")
	Constructor. More...

void	reset (void)
	Must set the FSM to a preliminary state when it has not been fed yet. More...

bool	atEnd (void) const
	Must return TRUE if the current state is an absorbing/final one. More...

bool	consume (char o)

const std::string &	separators (void) const noexcept
	Return a reference to the separators this fsm is able to recognize. More...

std::string	to_string (void) const
	Return a text representation of the FSM. Can be overriden. More...

virtual bool	consume (Obs o)=0
	Must consume the given observation and change state if necessary. More...

Methods
void	resetCheck (void)
	Reset checking the post-condition that the FSM does not go to an ending. More...

Protected Member Functions
char	caseChar (char c)

Member Typedef Documentation

◆ Ptr

template<typename Obs = char>

using elementa::adts::FSM< Obs >::Ptr = std::shared_ptr<FSM>

inherited

Pointer to a FSM that consumes observations of type Obs.

Definition at line 142 of file fsms.h.

◆ Num

using elementa::adts::BaseFSM::Num = size_t

inherited

To represent a number of FSMs.

Definition at line 74 of file fsms.h.

Constructor & Destructor Documentation

◆ SeparatorsFSM()

elementa::adts::SeparatorsFSM::SeparatorsFSM ( const std::string & seps = "\n\t \f\r\v\x00" )

inline

Constructor.

Parameters

seps	are the characters that will be recognized as separators.

Definition at line 236 of file fsms.h.

References reset().

Member Function Documentation

◆ reset()

void elementa::adts::SeparatorsFSM::reset ( void )

inlinevirtual

Must set the FSM to a preliminary state when it has not been fed yet.

Therefore, after this method, atEnd() must return FALSE. This method should be called from the constructors of derived FSMs to prepare them for reading observations.

See also: resetCheck()

Implements elementa::adts::BaseFSM.

Definition at line 239 of file fsms.h.

Referenced by SeparatorsFSM().

◆ atEnd()

bool elementa::adts::SeparatorsFSM::atEnd ( void ) const

inlinevirtual

Must return TRUE if the current state is an absorbing/final one.

After a reset, the fsm must not be in an ending state.

Note: - Some FSMs can change from ending state to non-ending state or vice versa while consuming obsrevations, and that is ok.

See also: resetCheck()

Implements elementa::adts::BaseFSM.

Definition at line 240 of file fsms.h.

◆ consume() [1/2]

bool elementa::adts::SeparatorsFSM::consume ( char o )

inline

Definition at line 242 of file fsms.h.

◆ separators()

const std::string & elementa::adts::SeparatorsFSM::separators ( void ) const

inlinenoexcept

Return a reference to the separators this fsm is able to recognize.

Definition at line 248 of file fsms.h.

◆ to_string()

std::string elementa::adts::SeparatorsFSM::to_string ( void ) const

inlinevirtual

Return a text representation of the FSM. Can be overriden.

Reimplemented from elementa::adts::BaseFSM.

Definition at line 251 of file fsms.h.

References elementa::adts::BaseFSM::to_string().

◆ caseChar()

char elementa::adts::BaseTextFSM::caseChar ( char c )

inlineprotectedinherited

Definition at line 172 of file fsms.h.

◆ consume() [2/2]

template<typename Obs = char>

virtual bool elementa::adts::FSM< Obs >::consume ( Obs o )

pure virtualinherited

Must consume the given observation and change state if necessary.

Must return TRUE if the observation can be consumed in the current state, either changing state or not. Must do nothing and return FALSE if it cannot consume that observation (it may change to end state if it is not there already).

◆ resetCheck()

void elementa::adts::BaseFSM::resetCheck ( void )

inlineinherited

Reset checking the post-condition that the FSM does not go to an ending.

See also: reset(), atEnd().

Definition at line 107 of file fsms.h.

References elementa::adts::BaseFSM::atEnd(), ELE_CODE_INVSTATE, elementa::adts::BaseFSM::reset(), and elementa::adts::BaseFSM::to_string().

◆ elementa::adts::IdentifierFSM

class elementa::adts::IdentifierFSM

A FSM that recognizes a standard identifier in text.

This FSM consumes observations while they correspond to the identifier. Reaches end states whenever the already consumed observations form a valid identifier. A standard identifier may being with a letter or an underscore, and follows with letters, digits or underscores.

See also: FSM, KeywordFSM.

Definition at line 275 of file fsms.h.

Inheritance diagram for elementa::adts::IdentifierFSM:

[legend]

Collaboration diagram for elementa::adts::IdentifierFSM:

[legend]

Public Types
using	Ptr = std::shared_ptr< FSM >
	Pointer to a FSM that consumes observations of type Obs. More...

Types, consts, etc.
using	Num = size_t
	To represent a number of FSMs. More...

Public Member Functions
	IdentifierFSM (void)
	Constructor. *‍/. More...

bool	atEnd (void) const
	Must return TRUE if the current state is an absorbing/final one. More...

bool	consume (char o)

void	reset (void)
	Must set the FSM to a preliminary state when it has not been fed yet. More...

std::string	to_string (void) const
	Return a text representation of the FSM. Can be overriden. More...

virtual bool	consume (Obs o)=0
	Must consume the given observation and change state if necessary. More...

Methods
void	resetCheck (void)
	Reset checking the post-condition that the FSM does not go to an ending. More...

Protected Member Functions
char	caseChar (char c)

Member Typedef Documentation

◆ Ptr

template<typename Obs = char>

using elementa::adts::FSM< Obs >::Ptr = std::shared_ptr<FSM>

inherited

Pointer to a FSM that consumes observations of type Obs.

Definition at line 142 of file fsms.h.

◆ Num

using elementa::adts::BaseFSM::Num = size_t

inherited

To represent a number of FSMs.

Definition at line 74 of file fsms.h.

Constructor & Destructor Documentation

◆ IdentifierFSM()

elementa::adts::IdentifierFSM::IdentifierFSM ( void )

inline

Constructor. *‍/.

Definition at line 280 of file fsms.h.

References reset().

Member Function Documentation

◆ atEnd()

bool elementa::adts::IdentifierFSM::atEnd ( void ) const

inlinevirtual

Must return TRUE if the current state is an absorbing/final one.

After a reset, the fsm must not be in an ending state.

Note: - Some FSMs can change from ending state to non-ending state or vice versa while consuming obsrevations, and that is ok.

See also: resetCheck()

Implements elementa::adts::BaseFSM.

Definition at line 282 of file fsms.h.

◆ reset()

void elementa::adts::IdentifierFSM::reset ( void )

inlinevirtual

Must set the FSM to a preliminary state when it has not been fed yet.

Therefore, after this method, atEnd() must return FALSE. This method should be called from the constructors of derived FSMs to prepare them for reading observations.

See also: resetCheck()

Implements elementa::adts::BaseFSM.

Definition at line 284 of file fsms.h.

Referenced by IdentifierFSM().

◆ to_string()

std::string elementa::adts::IdentifierFSM::to_string ( void ) const

inlinevirtual

Return a text representation of the FSM. Can be overriden.

Reimplemented from elementa::adts::BaseFSM.

Definition at line 286 of file fsms.h.

References elementa::adts::BaseFSM::to_string().

◆ caseChar()

char elementa::adts::BaseTextFSM::caseChar ( char c )

inlineprotectedinherited

Definition at line 172 of file fsms.h.

◆ consume()

template<typename Obs = char>

virtual bool elementa::adts::FSM< Obs >::consume ( Obs o )

pure virtualinherited

Must consume the given observation and change state if necessary.

Must return TRUE if the observation can be consumed in the current state, either changing state or not. Must do nothing and return FALSE if it cannot consume that observation (it may change to end state if it is not there already).

◆ resetCheck()

void elementa::adts::BaseFSM::resetCheck ( void )

inlineinherited

Reset checking the post-condition that the FSM does not go to an ending.

See also: reset(), atEnd().

Definition at line 107 of file fsms.h.

References elementa::adts::BaseFSM::atEnd(), ELE_CODE_INVSTATE, elementa::adts::BaseFSM::reset(), and elementa::adts::BaseFSM::to_string().

◆ elementa::adts::KeywordFSM

class elementa::adts::KeywordFSM

A FSM that recognizes some fixed, short (shorter than 255 chars) string.

In this FSM, the end state is reached only when the entire word has been consumed and nothing else can be consumed further. If an observation comes that cannot be consumed in the current state, that does not lead to an end state.

See also: FSM, IdentifierFSM.

Definition at line 316 of file fsms.h.

Inheritance diagram for elementa::adts::KeywordFSM:

[legend]

Collaboration diagram for elementa::adts::KeywordFSM:

[legend]

Public Types
using	Ptr = std::shared_ptr< FSM >
	Pointer to a FSM that consumes observations of type Obs. More...

Types, consts, etc.
using	Num = size_t
	To represent a number of FSMs. More...

Public Member Functions
	KeywordFSM (const std::string &word, bool casesens=true)
	Constructor from the word. That word is copied inside. More...

	KeywordFSM (const KeywordFSM &o)

KeywordFSM &	operator= (const KeywordFSM &o)

	KeywordFSM (KeywordFSM &&o)=delete

KeywordFSM &	operator= (KeywordFSM &&o)=delete

	~KeywordFSM (void)
	Destructor. More...

std::string	word (void) const
	Getter for the word. More...

bool	atEnd (void) const
	Must return TRUE if the current state is an absorbing/final one. More...

bool	consume (char o)

void	reset (void)
	Must set the FSM to a preliminary state when it has not been fed yet. More...

std::string	to_string (void) const
	Return a text representation of the FSM. Can be overriden. More...

virtual bool	consume (Obs o)=0
	Must consume the given observation and change state if necessary. More...

Methods
void	resetCheck (void)
	Reset checking the post-condition that the FSM does not go to an ending. More...

Protected Member Functions
char	caseChar (char c)

Member Typedef Documentation

◆ Ptr

template<typename Obs = char>

using elementa::adts::FSM< Obs >::Ptr = std::shared_ptr<FSM>

inherited

Pointer to a FSM that consumes observations of type Obs.

Definition at line 142 of file fsms.h.

◆ Num

using elementa::adts::BaseFSM::Num = size_t

inherited

To represent a number of FSMs.

Definition at line 74 of file fsms.h.

Constructor & Destructor Documentation

◆ KeywordFSM() [1/2]

elementa::adts::KeywordFSM::KeywordFSM	(	const std::string &	word,
		bool	casesens = `true`
	)

Constructor from the word. That word is copied inside.

The word can be empty, but it must be shorter than 255 chars.

◆ KeywordFSM() [2/2]

elementa::adts::KeywordFSM::KeywordFSM ( const KeywordFSM & o )

inline

Definition at line 324 of file fsms.h.

◆ ~KeywordFSM()

elementa::adts::KeywordFSM::~KeywordFSM ( void )

inline

Destructor.

Definition at line 331 of file fsms.h.

Member Function Documentation

◆ operator=()

KeywordFSM & elementa::adts::KeywordFSM::operator= ( const KeywordFSM & o )

inline

Definition at line 325 of file fsms.h.

◆ word()

std::string elementa::adts::KeywordFSM::word ( void ) const

inline

Getter for the word.

Definition at line 334 of file fsms.h.

Referenced by to_string().

◆ atEnd()

bool elementa::adts::KeywordFSM::atEnd ( void ) const

inlinevirtual

Must return TRUE if the current state is an absorbing/final one.

After a reset, the fsm must not be in an ending state.

Note: - Some FSMs can change from ending state to non-ending state or vice versa while consuming obsrevations, and that is ok.

See also: resetCheck()

Implements elementa::adts::BaseFSM.

Definition at line 336 of file fsms.h.

◆ consume() [1/2]

bool elementa::adts::KeywordFSM::consume ( char o )

inline

Definition at line 337 of file fsms.h.

◆ reset()

void elementa::adts::KeywordFSM::reset ( void )

inlinevirtual

Must set the FSM to a preliminary state when it has not been fed yet.

Therefore, after this method, atEnd() must return FALSE. This method should be called from the constructors of derived FSMs to prepare them for reading observations.

See also: resetCheck()

Implements elementa::adts::BaseFSM.

Definition at line 341 of file fsms.h.

◆ to_string()

std::string elementa::adts::KeywordFSM::to_string ( void ) const

inlinevirtual

Return a text representation of the FSM. Can be overriden.

Reimplemented from elementa::adts::BaseFSM.

Definition at line 343 of file fsms.h.

References elementa::adts::BaseFSM::to_string(), and word().

◆ caseChar()

char elementa::adts::BaseTextFSM::caseChar ( char c )

inlineprotectedinherited

Definition at line 172 of file fsms.h.

◆ consume() [2/2]

template<typename Obs = char>

virtual bool elementa::adts::FSM< Obs >::consume ( Obs o )

pure virtualinherited

Must consume the given observation and change state if necessary.

Must return TRUE if the observation can be consumed in the current state, either changing state or not. Must do nothing and return FALSE if it cannot consume that observation (it may change to end state if it is not there already).

◆ resetCheck()

void elementa::adts::BaseFSM::resetCheck ( void )

inlineinherited

Reset checking the post-condition that the FSM does not go to an ending.

See also: reset(), atEnd().

Definition at line 107 of file fsms.h.

References elementa::adts::BaseFSM::atEnd(), ELE_CODE_INVSTATE, elementa::adts::BaseFSM::reset(), and elementa::adts::BaseFSM::to_string().

◆ elementa::adts::CommentsFSM

class elementa::adts::CommentsFSM

A FSM that recognizes uni- or multi-line comments.

This FSM consumes observations while they are in a comment. Reaches end state whenever the comment is finished.

See also: FSM.

Definition at line 375 of file fsms.h.

Inheritance diagram for elementa::adts::CommentsFSM:

[legend]

Collaboration diagram for elementa::adts::CommentsFSM:

[legend]

Public Types
using	Ptr = std::shared_ptr< FSM >
	Pointer to a FSM that consumes observations of type Obs. More...

Types, consts, etc.
using	Num = size_t
	To represent a number of FSMs. More...

Public Member Functions
	CommentsFSM (const std::string &commstart="/", const std::string &commend="/")
	Constructor. More...

	CommentsFSM (const CommentsFSM &)=delete

	CommentsFSM (CommentsFSM &&)=delete

CommentsFSM &	operator= (const CommentsFSM &)=delete

CommentsFSM &	operator= (CommentsFSM &&)=delete

void	reset (void)
	Must set the FSM to a preliminary state when it has not been fed yet. More...

bool	atEnd (void) const
	Must return TRUE if the current state is an absorbing/final one. More...

bool	consume (char o)

std::string	beginText (void) const
	Return the start text for comments. More...

std::string	endText (void) const
	Return the end text for comments. More...

std::string	to_string (void) const
	Return a text representation of the FSM. Can be overriden. More...

virtual bool	consume (Obs o)=0
	Must consume the given observation and change state if necessary. More...

Methods
void	resetCheck (void)
	Reset checking the post-condition that the FSM does not go to an ending. More...

Protected Member Functions
char	caseChar (char c)

Member Typedef Documentation

◆ Ptr

template<typename Obs = char>

using elementa::adts::FSM< Obs >::Ptr = std::shared_ptr<FSM>

inherited

Pointer to a FSM that consumes observations of type Obs.

Definition at line 142 of file fsms.h.

◆ Num

using elementa::adts::BaseFSM::Num = size_t

inherited

To represent a number of FSMs.

Definition at line 74 of file fsms.h.

Constructor & Destructor Documentation

◆ CommentsFSM()

elementa::adts::CommentsFSM::CommentsFSM	(	const std::string &	commstart = `"/*"`,
		const std::string &	commend = `"*/"`
	)

Constructor.

Parameters

commstart	is the sequence of characters that begin the comment.
commend	is the sequence of characters that end the comment.

◆ ~CommentsFSM()

elementa::adts::CommentsFSM::~CommentsFSM ( void )

inline

Definition at line 390 of file fsms.h.

Member Function Documentation

◆ reset()

void elementa::adts::CommentsFSM::reset ( void )

inlinevirtual

Must set the FSM to a preliminary state when it has not been fed yet.

Therefore, after this method, atEnd() must return FALSE. This method should be called from the constructors of derived FSMs to prepare them for reading observations.

See also: resetCheck()

Implements elementa::adts::BaseFSM.

Definition at line 392 of file fsms.h.

◆ atEnd()

bool elementa::adts::CommentsFSM::atEnd ( void ) const

inlinevirtual

Must return TRUE if the current state is an absorbing/final one.

After a reset, the fsm must not be in an ending state.

Note: - Some FSMs can change from ending state to non-ending state or vice versa while consuming obsrevations, and that is ok.

See also: resetCheck()

Implements elementa::adts::BaseFSM.

Definition at line 393 of file fsms.h.

◆ beginText()

std::string elementa::adts::CommentsFSM::beginText ( void ) const

inline

Return the start text for comments.

Definition at line 398 of file fsms.h.

◆ endText()

std::string elementa::adts::CommentsFSM::endText ( void ) const

inline

Return the end text for comments.

Definition at line 402 of file fsms.h.

◆ to_string()

std::string elementa::adts::CommentsFSM::to_string ( void ) const

inlinevirtual

Return a text representation of the FSM. Can be overriden.

Reimplemented from elementa::adts::BaseFSM.

Definition at line 405 of file fsms.h.

References elementa::adts::BaseFSM::to_string().

◆ caseChar()

char elementa::adts::BaseTextFSM::caseChar ( char c )

inlineprotectedinherited

Definition at line 172 of file fsms.h.

◆ consume()

template<typename Obs = char>

virtual bool elementa::adts::FSM< Obs >::consume ( Obs o )

pure virtualinherited

Must consume the given observation and change state if necessary.

Must return TRUE if the observation can be consumed in the current state, either changing state or not. Must do nothing and return FALSE if it cannot consume that observation (it may change to end state if it is not there already).

◆ resetCheck()

void elementa::adts::BaseFSM::resetCheck ( void )

inlineinherited

Reset checking the post-condition that the FSM does not go to an ending.

See also: reset(), atEnd().

Definition at line 107 of file fsms.h.

References elementa::adts::BaseFSM::atEnd(), ELE_CODE_INVSTATE, elementa::adts::BaseFSM::reset(), and elementa::adts::BaseFSM::to_string().

◆ elementa::adts::IntegerTextFSM

class elementa::adts::IntegerTextFSM

A FSM that recognizes an integer number from text.

This FSM consumes observations while they correspond to the number. Reaches end states whenever the alreay consumed observations form a valid number. It can go to a non-ending state after being in an ending state.

See also: FSM, NumberTextFSM.

Definition at line 429 of file fsms.h.

Inheritance diagram for elementa::adts::IntegerTextFSM:

[legend]

Collaboration diagram for elementa::adts::IntegerTextFSM:

[legend]

Public Types
using	Ptr = std::shared_ptr< FSM >
	Pointer to a FSM that consumes observations of type Obs. More...

Types, consts, etc.
using	Num = size_t
	To represent a number of FSMs. More...

Public Member Functions
	ELE_CLASS_ENUM (Kind, kDec, kHex, kOct, kBin)
	Kinds of number that can be recognized.

	IntegerTextFSM (Kind kind=Kind::kDec, bool withsign=true)
	Constructor. More...

	IntegerTextFSM (const IntegerTextFSM &o)

	IntegerTextFSM (IntegerTextFSM &&o)

IntegerTextFSM &	operator= (const IntegerTextFSM &o)

IntegerTextFSM &	operator= (IntegerTextFSM &&o)

bool	atEnd (void) const
	Must return TRUE if the current state is an absorbing/final one. More...

bool	consume (char o)

void	reset (void)
	Must set the FSM to a preliminary state when it has not been fed yet. More...

std::string	to_string (void) const
	Return a text representation of the FSM. Can be overriden. More...

virtual bool	consume (Obs o)=0
	Must consume the given observation and change state if necessary. More...

Methods
void	resetCheck (void)
	Reset checking the post-condition that the FSM does not go to an ending. More...

Protected Member Functions
char	caseChar (char c)

Member Typedef Documentation

◆ Ptr

template<typename Obs = char>

using elementa::adts::FSM< Obs >::Ptr = std::shared_ptr<FSM>

inherited

Pointer to a FSM that consumes observations of type Obs.

Definition at line 142 of file fsms.h.

◆ Num

using elementa::adts::BaseFSM::Num = size_t

inherited

To represent a number of FSMs.

Definition at line 74 of file fsms.h.

Constructor & Destructor Documentation

◆ IntegerTextFSM() [1/3]

elementa::adts::IntegerTextFSM::IntegerTextFSM	(	Kind	kind = `Kind::kDec`,
		bool	withsign = `true`
	)

inline

Constructor.

Parameters

withsign sets whether we wish to recognize an initial sign or not. It is valid for any kind of number.

Definition at line 443 of file fsms.h.

References reset().

◆ IntegerTextFSM() [2/3]

elementa::adts::IntegerTextFSM::IntegerTextFSM ( const IntegerTextFSM & o )

inline

Definition at line 447 of file fsms.h.

◆ IntegerTextFSM() [3/3]

elementa::adts::IntegerTextFSM::IntegerTextFSM ( IntegerTextFSM && o )

inline

Definition at line 448 of file fsms.h.

Member Function Documentation

◆ operator=() [1/2]

IntegerTextFSM & elementa::adts::IntegerTextFSM::operator= ( const IntegerTextFSM & o )

inline

Definition at line 449 of file fsms.h.

◆ operator=() [2/2]

IntegerTextFSM & elementa::adts::IntegerTextFSM::operator= ( IntegerTextFSM && o )

inline

Definition at line 451 of file fsms.h.

◆ atEnd()

bool elementa::adts::IntegerTextFSM::atEnd ( void ) const

inlinevirtual

Must return TRUE if the current state is an absorbing/final one.

After a reset, the fsm must not be in an ending state.

Note: - Some FSMs can change from ending state to non-ending state or vice versa while consuming obsrevations, and that is ok.

See also: resetCheck()

Implements elementa::adts::BaseFSM.

Definition at line 454 of file fsms.h.

◆ reset()

void elementa::adts::IntegerTextFSM::reset ( void )

virtual

Must set the FSM to a preliminary state when it has not been fed yet.

Therefore, after this method, atEnd() must return FALSE. This method should be called from the constructors of derived FSMs to prepare them for reading observations.

See also: resetCheck()

Implements elementa::adts::BaseFSM.

Referenced by IntegerTextFSM().

◆ to_string()

std::string elementa::adts::IntegerTextFSM::to_string ( void ) const

inlinevirtual

Return a text representation of the FSM. Can be overriden.

Reimplemented from elementa::adts::BaseFSM.

Definition at line 458 of file fsms.h.

References elementa::adts::BaseFSM::to_string().

◆ caseChar()

char elementa::adts::BaseTextFSM::caseChar ( char c )

inlineprotectedinherited

Definition at line 172 of file fsms.h.

◆ consume()

template<typename Obs = char>

virtual bool elementa::adts::FSM< Obs >::consume ( Obs o )

pure virtualinherited

Must consume the given observation and change state if necessary.

Must return TRUE if the observation can be consumed in the current state, either changing state or not. Must do nothing and return FALSE if it cannot consume that observation (it may change to end state if it is not there already).

◆ resetCheck()

void elementa::adts::BaseFSM::resetCheck ( void )

inlineinherited

Reset checking the post-condition that the FSM does not go to an ending.

See also: reset(), atEnd().

Definition at line 107 of file fsms.h.

References elementa::adts::BaseFSM::atEnd(), ELE_CODE_INVSTATE, elementa::adts::BaseFSM::reset(), and elementa::adts::BaseFSM::to_string().

◆ elementa::adts::NumberTextFSM

class elementa::adts::NumberTextFSM

A FSM that recognizes a real or integer number from a decimal text.

This FSM consumes observations while they correspond to the number. Reaches end states whenever the alreay consumed observations form a valid number. It can go to a non-ending state after being in an ending state.

Note: - This FSM also recognizes integerss.

See also: FSM, IntegerTextFSM.

Definition at line 490 of file fsms.h.

Inheritance diagram for elementa::adts::NumberTextFSM:

[legend]

Collaboration diagram for elementa::adts::NumberTextFSM:

[legend]

Public Types
using	Ptr = std::shared_ptr< FSM >
	Pointer to a FSM that consumes observations of type Obs. More...

Types, consts, etc.
using	Num = size_t
	To represent a number of FSMs. More...

Public Member Functions
	NumberTextFSM (void)
	Constructor. More...

	NumberTextFSM (const NumberTextFSM &o)

	NumberTextFSM (NumberTextFSM &&o)

NumberTextFSM &	operator= (const NumberTextFSM &o)

NumberTextFSM &	operator= (NumberTextFSM &&o)

bool	atEnd (void) const
	Must return TRUE if the current state is an absorbing/final one. More...

bool	consume (char o)

void	reset (void)
	Must set the FSM to a preliminary state when it has not been fed yet. More...

std::string	to_string (void) const
	Return a text representation of the FSM. Can be overriden. More...

virtual bool	consume (Obs o)=0
	Must consume the given observation and change state if necessary. More...

Methods
void	resetCheck (void)
	Reset checking the post-condition that the FSM does not go to an ending. More...

Protected Member Functions
char	caseChar (char c)

Member Typedef Documentation

◆ Ptr

template<typename Obs = char>

using elementa::adts::FSM< Obs >::Ptr = std::shared_ptr<FSM>

inherited

Pointer to a FSM that consumes observations of type Obs.

Definition at line 142 of file fsms.h.

◆ Num

using elementa::adts::BaseFSM::Num = size_t

inherited

To represent a number of FSMs.

Definition at line 74 of file fsms.h.

Constructor & Destructor Documentation

◆ NumberTextFSM() [1/3]

elementa::adts::NumberTextFSM::NumberTextFSM ( void )

inline

Constructor.

Definition at line 495 of file fsms.h.

References reset().

◆ NumberTextFSM() [2/3]

elementa::adts::NumberTextFSM::NumberTextFSM ( const NumberTextFSM & o )

inline

Definition at line 497 of file fsms.h.

◆ NumberTextFSM() [3/3]

elementa::adts::NumberTextFSM::NumberTextFSM ( NumberTextFSM && o )

inline

Definition at line 498 of file fsms.h.

Member Function Documentation

◆ operator=() [1/2]

NumberTextFSM & elementa::adts::NumberTextFSM::operator= ( const NumberTextFSM & o )

inline

Definition at line 499 of file fsms.h.

◆ operator=() [2/2]

NumberTextFSM & elementa::adts::NumberTextFSM::operator= ( NumberTextFSM && o )

inline

Definition at line 501 of file fsms.h.

◆ atEnd()

bool elementa::adts::NumberTextFSM::atEnd ( void ) const

inlinevirtual

Must return TRUE if the current state is an absorbing/final one.

After a reset, the fsm must not be in an ending state.

Note: - Some FSMs can change from ending state to non-ending state or vice versa while consuming obsrevations, and that is ok.

See also: resetCheck()

Implements elementa::adts::BaseFSM.

Definition at line 504 of file fsms.h.

◆ reset()

void elementa::adts::NumberTextFSM::reset ( void )

virtual

Must set the FSM to a preliminary state when it has not been fed yet.

Therefore, after this method, atEnd() must return FALSE. This method should be called from the constructors of derived FSMs to prepare them for reading observations.

See also: resetCheck()

Implements elementa::adts::BaseFSM.

Referenced by NumberTextFSM().

◆ to_string()

std::string elementa::adts::NumberTextFSM::to_string ( void ) const

inlinevirtual

Return a text representation of the FSM. Can be overriden.

Reimplemented from elementa::adts::BaseFSM.

Definition at line 508 of file fsms.h.

References elementa::adts::BaseFSM::to_string().

◆ caseChar()

char elementa::adts::BaseTextFSM::caseChar ( char c )

inlineprotectedinherited

Definition at line 172 of file fsms.h.

◆ consume()

template<typename Obs = char>

virtual bool elementa::adts::FSM< Obs >::consume ( Obs o )

pure virtualinherited

Must consume the given observation and change state if necessary.

Must return TRUE if the observation can be consumed in the current state, either changing state or not. Must do nothing and return FALSE if it cannot consume that observation (it may change to end state if it is not there already).

◆ resetCheck()

void elementa::adts::BaseFSM::resetCheck ( void )

inlineinherited

Reset checking the post-condition that the FSM does not go to an ending.

See also: reset(), atEnd().

Definition at line 107 of file fsms.h.

References elementa::adts::BaseFSM::atEnd(), ELE_CODE_INVSTATE, elementa::adts::BaseFSM::reset(), and elementa::adts::BaseFSM::to_string().

Description

Classes

Class Documentation

◆ elementa::adts::BaseFSM

Public Types

Public Member Functions

Member Typedef Documentation

◆ Num

Member Function Documentation

◆ atEnd()

◆ reset()

◆ resetCheck()

◆ to_string()

◆ elementa::adts::FSM

Public Types

Public Member Functions

Member Typedef Documentation

◆ Ptr

◆ Num

Member Function Documentation

◆ consume()

◆ atEnd()

◆ reset()

◆ resetCheck()

◆ to_string()

◆ elementa::adts::BaseTextFSM

Public Types

Public Member Functions

Protected Member Functions

Member Typedef Documentation

◆ Ptr

◆ Num

Constructor & Destructor Documentation

◆ BaseTextFSM()

Member Function Documentation

◆ caseChar()

◆ consume()

◆ atEnd()

◆ reset()

◆ resetCheck()

◆ to_string()

◆ elementa::adts::CharFSM

Public Types

Public Member Functions

Protected Member Functions

Member Typedef Documentation

◆ Ptr

◆ Num

Constructor & Destructor Documentation

◆ CharFSM()

Member Function Documentation

◆ reset()

◆ atEnd()

◆ consume() [1/2]

◆ character()

◆ to_string()

◆ caseChar()

◆ consume() [2/2]

◆ resetCheck()

◆ elementa::adts::SeparatorsFSM

Public Types

Public Member Functions

Protected Member Functions

Member Typedef Documentation

◆ Ptr

◆ Num

Constructor & Destructor Documentation

◆ SeparatorsFSM()

Member Function Documentation

◆ reset()

◆ atEnd()

◆ consume() [1/2]

◆ separators()

◆ to_string()

◆ caseChar()

◆ consume() [2/2]

◆ resetCheck()

◆ elementa::adts::IdentifierFSM

Public Types

Public Member Functions
