Description

These classes provide support for the ZX color system.

NOTE:

-These classes are not thread-safe.

Copyright: See LICENSE.txt and AUTHORS.txt file.

http://jafma.net

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.

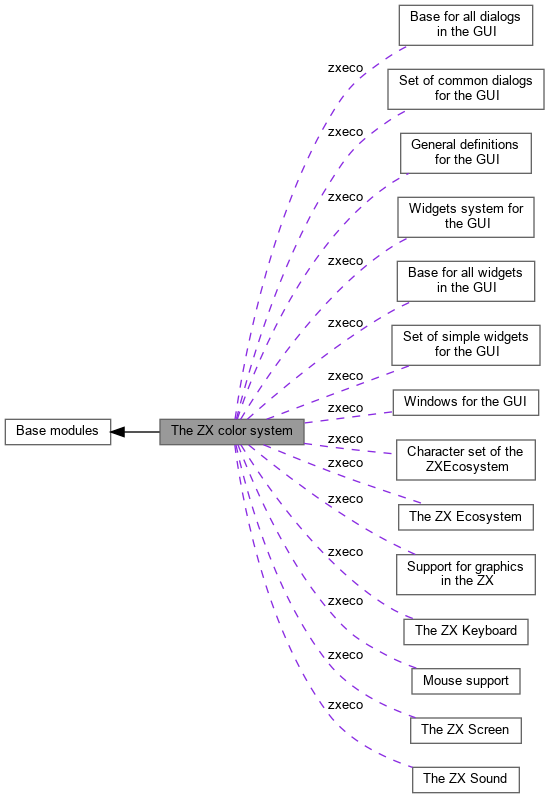

Collaboration diagram for The ZX color system:

Namespaces
namespace	zxeco
	The main namespace of the library, that spans across all the zx modules.

Classes
class	zxeco::Flash
	A value of flash that is different to the same value of bright, inv or over. More...

class	zxeco::Bright
	A value of bright that is different to the same value of flash, inv or over. More...

class	zxeco::Inverse
	A value of inv that is different to the same value of flash, bright or over. More...

class	zxeco::Over
	A value of over that is different to the same value of flash, bright or inv. More...

class	zxeco::BasicColor
	One of the 8 basic colors of the ZX, not considering bright or flash. More...

class	zxeco::BrightColor
	A basic color plus a bright level (on / off). More...

class	zxeco::PrintColor
	A BasicColor or CONTRAST or TRANSPARENT, but not with bright or flash. More...

class	zxeco::Paper
	A printcolor for paper as a different type from a color for ink. More...

class	zxeco::Ink
	A printcolor for ink as a different type from a color for paper. More...

class	zxeco::AttrColors
	Complete color specification for an attr (character) cell on the zx screen. More...

class	zxeco::Colors
	Color specification for a character cell, plus modes of printing. More...

Enumerations
enum	zxeco::ColorBaseType : uint8_t { BLACK = 0 , BLUE , RED , MAGENTA , GREEN , CYAN , YELLOW , zxeco::WHITE , zxeco::NUMBASICCOLORS , zxeco::TRANSPARENT = NUMBASICCOLORS , zxeco::CONTRAST , NUMPRINTCOLORS }
	Main color constants. More...

Class Documentation

◆ zxeco::Flash

class zxeco::Flash

A value of flash that is different to the same value of bright, inv or over.

Definition at line 82 of file ZXColors.h.

Public Member Functions
	Flash (ColorModVal cmv)

	Flash (bool f=true)

	operator ColorModVal (void) const noexcept

Constructor & Destructor Documentation

◆ Flash()

zxeco::Flash::Flash ( bool f = true )

inlineexplicit

Definition at line 87 of file ZXColors.h.

Member Function Documentation

◆ operator ColorModVal()

zxeco::Flash::operator ColorModVal ( void ) const

inlinenoexcept

Definition at line 89 of file ZXColors.h.

◆ zxeco::Bright

class zxeco::Bright

A value of bright that is different to the same value of flash, inv or over.

Definition at line 99 of file ZXColors.h.

Public Member Functions
	Bright (ColorModVal cmv)

	Bright (bool b=true)

	operator ColorModVal (void) const noexcept

Constructor & Destructor Documentation

◆ Bright()

zxeco::Bright::Bright ( bool b = true )

inlineexplicit

Definition at line 104 of file ZXColors.h.

Member Function Documentation

◆ operator ColorModVal()

zxeco::Bright::operator ColorModVal ( void ) const

inlinenoexcept

Definition at line 106 of file ZXColors.h.

◆ zxeco::Inverse

class zxeco::Inverse

A value of inv that is different to the same value of flash, bright or over.

Definition at line 116 of file ZXColors.h.

Public Member Functions
	Inverse (ColorModVal cmv)

	Inverse (bool i=true)

	operator ColorModVal (void) const noexcept

Constructor & Destructor Documentation

◆ Inverse()

zxeco::Inverse::Inverse ( bool i = true )

inlineexplicit

Definition at line 121 of file ZXColors.h.

Member Function Documentation

◆ operator ColorModVal()

zxeco::Inverse::operator ColorModVal ( void ) const

inlinenoexcept

Definition at line 123 of file ZXColors.h.

◆ zxeco::Over

class zxeco::Over

A value of over that is different to the same value of flash, bright or inv.

Definition at line 133 of file ZXColors.h.

Public Member Functions
	Over (ColorModVal cmv)

	Over (bool o=true)

	operator ColorModVal (void) const noexcept

Constructor & Destructor Documentation

◆ Over()

zxeco::Over::Over ( bool o = true )

inlineexplicit

Definition at line 138 of file ZXColors.h.

Member Function Documentation

◆ operator ColorModVal()

zxeco::Over::operator ColorModVal ( void ) const

inlinenoexcept

Definition at line 140 of file ZXColors.h.

◆ zxeco::BasicColor

class zxeco::BasicColor

One of the 8 basic colors of the ZX, not considering bright or flash.

Definition at line 153 of file ZXColors.h.

Public Member Functions
	BasicColor (ColorBaseType cbt=BLACK)
	Default constructor from a given base color. More...

	operator ColorBaseType (void) const noexcept
	Conversion to ColorBaseType. More...

BasicColor	contrasting (void) const noexcept
	Return the basic color that contrasts with this one. More...

void	setNext (bool circular=true)
	Set this color to the next basic color. More...

std::string	to_string (void) const
	Return the name for this color.

Constructor & Destructor Documentation

◆ BasicColor()

zxeco::BasicColor::BasicColor ( ColorBaseType cbt = BLACK )

Default constructor from a given base color.

This conversion constructor allows for using simply BLACK in an expression that expects a BasicColor. Throws if CBT is out of range.

Member Function Documentation

◆ operator ColorBaseType()

zxeco::BasicColor::operator ColorBaseType ( void ) const

inlinenoexcept

Conversion to ColorBaseType.

This operator allows for using a BasicColor object in any expression expecting a ColorBaseType, e.g., for checking equallity of a BasicColor to any of the BLACK, BLUE, etc. constants.

Definition at line 165 of file ZXColors.h.

◆ contrasting()

BasicColor zxeco::BasicColor::contrasting ( void ) const

inlinenoexcept

Return the basic color that contrasts with this one.

Definition at line 170 of file ZXColors.h.

◆ setNext()

void zxeco::BasicColor::setNext ( bool circular = true )

Set this color to the next basic color.

Set it to the next basic color, maybe in a circular way (otherwise, raise an exception when reaching the last color).

◆ zxeco::BrightColor

class zxeco::BrightColor

A basic color plus a bright level (on / off).

This class also relates such a color with info about its RGB components and allows to consider all the bright colors in a linear sequence.

Definition at line 194 of file ZXColors.h.

Static Public Attributes
static constexpr RGBPalette::Size	NUMLINEARCOLORS = NUMBASICCOLORS * 2
	Number of linear colors. Black is counted twice, being equal w & w/o br. More...

static constexpr RGBPalette::Index	FIRSTLINEARCOLORWBRIGHT = NUMBASICCOLORS
	First linear color that has bright. More...

Public Member Functions
	BrightColor (BasicColor bc=BLACK, bool br=false)
	Default constructor and constructor from BasicColor. More...

	BrightColor (RGBPalette::Index li)
	Constructor from a linear index, from 0 to NUMLINEARCOLORS-1. More...

	BrightColor (const RGBColor &col)
	Constructor from a rgb color. More...

BasicColor	color (void) const noexcept
	Get the basic color. More...

bool	bright (void) const noexcept
	Get the bright level. More...

RGBPalette::Index	linear (void) const noexcept
	Return the index of this color in the ZX palette. More...

const RGBColor &	rgbColor (void) const noexcept
	Return the RGBColor used to define this BrightColor. More...

std::string	to_string (void) const
	Return a descriptive string for this color.

Constructor & Destructor Documentation

◆ BrightColor() [1/3]

zxeco::BrightColor::BrightColor	(	BasicColor	bc = `BLACK`,
		bool	br = `false`
	)

inline

Default constructor and constructor from BasicColor.

Definition at line 208 of file ZXColors.h.

◆ BrightColor() [2/3]

zxeco::BrightColor::BrightColor ( RGBPalette::Index li )

Constructor from a linear index, from 0 to NUMLINEARCOLORS-1.

Raise an exception if the index is invalid.

◆ BrightColor() [3/3]

zxeco::BrightColor::BrightColor ( const RGBColor & col )

inline

Constructor from a rgb color.

Get the nearest ZX color to RGB.

Definition at line 216 of file ZXColors.h.

Member Function Documentation

◆ color()

BasicColor zxeco::BrightColor::color ( void ) const

inlinenoexcept

Get the basic color.

Definition at line 223 of file ZXColors.h.

◆ bright()

bool zxeco::BrightColor::bright ( void ) const

inlinenoexcept

Get the bright level.

Definition at line 226 of file ZXColors.h.

◆ linear()

RGBPalette::Index zxeco::BrightColor::linear ( void ) const

inlinenoexcept

Return the index of this color in the ZX palette.

Undefined result if bright is transparent.

Definition at line 229 of file ZXColors.h.

◆ rgbColor()

const RGBColor & zxeco::BrightColor::rgbColor ( void ) const

inlinenoexcept

Return the RGBColor used to define this BrightColor.

The returned RGBColor is static and therefore it always exists.

Definition at line 234 of file ZXColors.h.

Member Data Documentation

◆ NUMLINEARCOLORS

constexpr RGBPalette::Size zxeco::BrightColor::NUMLINEARCOLORS = NUMBASICCOLORS * 2

staticconstexpr

Number of linear colors. Black is counted twice, being equal w & w/o br.

Definition at line 201 of file ZXColors.h.

◆ FIRSTLINEARCOLORWBRIGHT

constexpr RGBPalette::Index zxeco::BrightColor::FIRSTLINEARCOLORWBRIGHT = NUMBASICCOLORS

staticconstexpr

First linear color that has bright.

Definition at line 204 of file ZXColors.h.

◆ zxeco::PrintColor

class zxeco::PrintColor

A BasicColor or CONTRAST or TRANSPARENT, but not with bright or flash.

Definition at line 254 of file ZXColors.h.

Inheritance diagram for zxeco::PrintColor:

[legend]

Public Member Functions
	PrintColor (ColorBaseType cbt=BLACK)
	Default constructor and from a constant color. Call base constructor. More...

	PrintColor (const BasicColor &bc) noexcept
	Constructor from the corresponding BasicColor. More...

	operator ColorBaseType (void) const noexcept
	Conversion to ColorBaseType. More...

BasicColor	basic (void) const
	Conversion to BasicColor, if a valid one; otherwise, exception.

bool	isBasic (void) const noexcept
	Return TRUE if the color is a basic one and not CONTRAST or TRANSP. More...

std::string	to_string (void) const
	Return a descriptive text of the color.

Constructor & Destructor Documentation

◆ PrintColor() [1/2]

zxeco::PrintColor::PrintColor ( ColorBaseType cbt = BLACK )

Default constructor and from a constant color. Call base constructor.

This conversion constructor allows to use the constant (BLACK, BLUE, ...) in any expression expecting a PrintColor.

◆ PrintColor() [2/2]

zxeco::PrintColor::PrintColor ( const BasicColor & bc )

inlinenoexcept

Constructor from the corresponding BasicColor.

This conversion constructor allows to use a BasicColor in any expression expecting a PrintColor.

Definition at line 263 of file ZXColors.h.

Member Function Documentation

◆ operator ColorBaseType()

zxeco::PrintColor::operator ColorBaseType ( void ) const

inlinenoexcept

Conversion to ColorBaseType.

This operator allows to use a PrintColor in expressions expecting a constant (BLACK, BLUE, ...).

Definition at line 270 of file ZXColors.h.

◆ isBasic()

bool zxeco::PrintColor::isBasic ( void ) const

inlinenoexcept

Return TRUE if the color is a basic one and not CONTRAST or TRANSP.

Definition at line 277 of file ZXColors.h.

◆ zxeco::Paper

class zxeco::Paper

A printcolor for paper as a different type from a color for ink.

Definition at line 292 of file ZXColors.h.

Inheritance diagram for zxeco::Paper:

[legend]

Collaboration diagram for zxeco::Paper:

[legend]

Public Member Functions
	Paper (PrintColor p)

Public Member Functions inherited from zxeco::PrintColor
	PrintColor (ColorBaseType cbt=BLACK)
	Default constructor and from a constant color. Call base constructor. More...

	PrintColor (const BasicColor &bc) noexcept
	Constructor from the corresponding BasicColor. More...

	operator ColorBaseType (void) const noexcept
	Conversion to ColorBaseType. More...

BasicColor	basic (void) const
	Conversion to BasicColor, if a valid one; otherwise, exception.

bool	isBasic (void) const noexcept
	Return TRUE if the color is a basic one and not CONTRAST or TRANSP. More...

std::string	to_string (void) const
	Return a descriptive text of the color.

Constructor & Destructor Documentation

◆ Paper()

zxeco::Paper::Paper ( PrintColor p )

inlineexplicit

Definition at line 296 of file ZXColors.h.

◆ zxeco::Ink

class zxeco::Ink

A printcolor for ink as a different type from a color for paper.

Definition at line 301 of file ZXColors.h.

Inheritance diagram for zxeco::Ink:

[legend]

Collaboration diagram for zxeco::Ink:

[legend]

Public Member Functions
	Ink (PrintColor p)

Public Member Functions inherited from zxeco::PrintColor
	PrintColor (ColorBaseType cbt=BLACK)
	Default constructor and from a constant color. Call base constructor. More...

	PrintColor (const BasicColor &bc) noexcept
	Constructor from the corresponding BasicColor. More...

	operator ColorBaseType (void) const noexcept
	Conversion to ColorBaseType. More...

BasicColor	basic (void) const
	Conversion to BasicColor, if a valid one; otherwise, exception.

bool	isBasic (void) const noexcept
	Return TRUE if the color is a basic one and not CONTRAST or TRANSP. More...

std::string	to_string (void) const
	Return a descriptive text of the color.

Constructor & Destructor Documentation

◆ Ink()

zxeco::Ink::Ink ( PrintColor p )

inlineexplicit

Definition at line 305 of file ZXColors.h.

◆ zxeco::AttrColors

class zxeco::AttrColors

Complete color specification for an attr (character) cell on the zx screen.

It contains: flash, bright, paper and ink, with the two latter being PrintColor and all supporting TRANSPARENT values.

Definition at line 314 of file ZXColors.h.

Inheritance diagram for zxeco::AttrColors:

[legend]

Public Member Functions
	AttrColors (void)
	Default constructor: no bright, no flash, black ink, white paper. More...

	AttrColors (Flash f, Bright b, Paper p, Ink i)
	Constructor from elements. More...

	AttrColors (uint8_t attr)
	Constructor from the byte that contains the screen attribute.

uint8_t	toAttr (void) const
	Convert the color specification into a byte for the attribute screen. More...

ColorModVal	flash (void) const noexcept
	Get the flash element. More...

ColorModVal	bright (void) const noexcept
	Get the bright element. More...

PrintColor	paper (void) const noexcept
	Get the paper element. More...

PrintColor	ink (void) const noexcept
	Get the ink element. More...

bool	rgb (RGBColor &ink, RGBColor &paper) const
	Get RGB colors for this attribute and return flash.

void	setFlash (ColorModVal f) noexcept
	Change the flash element. More...

void	setFlash (bool f=true) noexcept
	< Change the flash element to one of ON or OFF. More...

void	setBright (ColorModVal b) noexcept
	Change the bright element. More...

void	setBright (bool b=true) noexcept
	< Change the bright element to one of ON or OFF. More...

void	setPaper (PrintColor p) noexcept
	Change the paper element. More...

void	setInk (PrintColor i) noexcept
	Change the ink element. More...

void	swapPaperAndInk (void) noexcept
	Swap paper and ink. More...

AttrColors	swapped (void) const noexcept
	< Return a version of these colors but with ink and paper swapped. More...

void	adjustByExisting (const AttrColors &ex)
	Change this attrs as though the ZX would use them for printing on EX. More...

std::string	to_string (bool shorttxt=false) const
	Return a descriptive text of this color specification.

Constructor & Destructor Documentation

◆ AttrColors() [1/2]

zxeco::AttrColors::AttrColors ( void )

inline

Default constructor: no bright, no flash, black ink, white paper.

Definition at line 320 of file ZXColors.h.

◆ AttrColors() [2/2]

zxeco::AttrColors::AttrColors	(	Flash	f,
		Bright	b,
		Paper	p,
		Ink	i
	)

inline

Constructor from elements.

Definition at line 323 of file ZXColors.h.

Member Function Documentation

◆ toAttr()

uint8_t zxeco::AttrColors::toAttr ( void ) const

Convert the color specification into a byte for the attribute screen.

CONTRAST and TRANSPARENT colors, and TRANSPARENT bright/flash, produce exception.

◆ flash()

ColorModVal zxeco::AttrColors::flash ( void ) const

inlinenoexcept

Get the flash element.

Definition at line 339 of file ZXColors.h.

◆ bright()

ColorModVal zxeco::AttrColors::bright ( void ) const

inlinenoexcept

Get the bright element.

Definition at line 342 of file ZXColors.h.

◆ paper()

PrintColor zxeco::AttrColors::paper ( void ) const

inlinenoexcept

Get the paper element.

Definition at line 345 of file ZXColors.h.

◆ ink()

PrintColor zxeco::AttrColors::ink ( void ) const

inlinenoexcept

Get the ink element.

Definition at line 348 of file ZXColors.h.

◆ setFlash() [1/2]

void zxeco::AttrColors::setFlash ( ColorModVal f )

inlinenoexcept

Change the flash element.

Definition at line 354 of file ZXColors.h.

◆ setFlash() [2/2]

void zxeco::AttrColors::setFlash ( bool f = true )

inlinenoexcept

< Change the flash element to one of ON or OFF.

Definition at line 357 of file ZXColors.h.

◆ setBright() [1/2]

void zxeco::AttrColors::setBright ( ColorModVal b )

inlinenoexcept

Change the bright element.

Definition at line 361 of file ZXColors.h.

◆ setBright() [2/2]

void zxeco::AttrColors::setBright ( bool b = true )

inlinenoexcept

< Change the bright element to one of ON or OFF.

Definition at line 364 of file ZXColors.h.

◆ setPaper()

void zxeco::AttrColors::setPaper ( PrintColor p )

inlinenoexcept

Change the paper element.

Definition at line 368 of file ZXColors.h.

◆ setInk()

void zxeco::AttrColors::setInk ( PrintColor i )

inlinenoexcept

Change the ink element.

Definition at line 371 of file ZXColors.h.

◆ swapPaperAndInk()

void zxeco::AttrColors::swapPaperAndInk ( void )

inlinenoexcept

Swap paper and ink.

Definition at line 374 of file ZXColors.h.

◆ swapped()

AttrColors zxeco::AttrColors::swapped ( void ) const

inlinenoexcept

< Return a version of these colors but with ink and paper swapped.

Definition at line 377 of file ZXColors.h.

◆ adjustByExisting()

void zxeco::AttrColors::adjustByExisting ( const AttrColors & ex )

Change this attrs as though the ZX would use them for printing on EX.

This method works as the original ZX when printing with certain attrs (the ones in this object) on a character cell that has others (the ones in EX), i.e., this method changes transparencies and constrasts by concrete colors according to the ones in EX.

According to original ZX behaviour of printing (0x0dbd ROM, in this very sequence):

1.- Substitute ink 8 by ex.ink and paper 8 by ex.paper
2.- If paper == 9, substitute paper 9 by contrast of ink (if ink == 9,
    then set ink to BLACK before that).
3.- If ink == 9, substitute ink 9 by contrast of paper.
4.- If bright == 8, substitute it by ex.bright
5.- If flash == 8, substitute it by ex.flash

For drawing, the same is done but only ink is taken from the desired colors.

Exceptions are thrown if EX contains non-basic colors.

◆ zxeco::Colors

class zxeco::Colors

Color specification for a character cell, plus modes of printing.

Contains an AttrColors object plus the inverse and over modes of printing.

Definition at line 419 of file ZXColors.h.

Inheritance diagram for zxeco::Colors:

[legend]

Collaboration diagram for zxeco::Colors:

[legend]

Public Member Functions
	Colors (void)
	Default constructor: default color attribute plus no inverse or over. More...

	Colors (AttrColors cc, Inverse inv, Over ov)
	Constructor from an attribute specification plus inverse and over. More...

ColorModVal	inverse (void) const noexcept
	Get the inverse mode. More...

void	setInverse (ColorModVal inv) noexcept
	Change the inverse mode. More...

void	setInverse (bool i=true) noexcept
	< Change the inverse element to one of ON or OFF. More...

ColorModVal	over (void) const noexcept
	Get the over mode. More...

void	setOver (ColorModVal ov) noexcept
	Change the over mode. More...

void	setOver (bool o=true) noexcept
	Change the over element to one of ON or OFF. More...

Colors &	operator<< (Paper p) noexcept

Colors &	operator<< (Ink i) noexcept

Colors &	operator<< (Bright b) noexcept

Colors &	operator<< (Flash f) noexcept

Colors &	operator<< (Inverse f) noexcept

Colors &	operator<< (Over o) noexcept

std::string	to_string (void) const
	Return a text with the information of the colors. More...

Public Member Functions inherited from zxeco::AttrColors
	AttrColors (void)
	Default constructor: no bright, no flash, black ink, white paper. More...

	AttrColors (Flash f, Bright b, Paper p, Ink i)
	Constructor from elements. More...

	AttrColors (uint8_t attr)
	Constructor from the byte that contains the screen attribute.

uint8_t	toAttr (void) const
	Convert the color specification into a byte for the attribute screen. More...

ColorModVal	flash (void) const noexcept
	Get the flash element. More...

ColorModVal	bright (void) const noexcept
	Get the bright element. More...

PrintColor	paper (void) const noexcept
	Get the paper element. More...

PrintColor	ink (void) const noexcept
	Get the ink element. More...

bool	rgb (RGBColor &ink, RGBColor &paper) const
	Get RGB colors for this attribute and return flash.

void	setFlash (ColorModVal f) noexcept
	Change the flash element. More...

void	setFlash (bool f=true) noexcept
	< Change the flash element to one of ON or OFF. More...

void	setBright (ColorModVal b) noexcept
	Change the bright element. More...

void	setBright (bool b=true) noexcept
	< Change the bright element to one of ON or OFF. More...

void	setPaper (PrintColor p) noexcept
	Change the paper element. More...

void	setInk (PrintColor i) noexcept
	Change the ink element. More...

void	swapPaperAndInk (void) noexcept
	Swap paper and ink. More...

AttrColors	swapped (void) const noexcept
	< Return a version of these colors but with ink and paper swapped. More...

void	adjustByExisting (const AttrColors &ex)
	Change this attrs as though the ZX would use them for printing on EX. More...

std::string	to_string (bool shorttxt=false) const
	Return a descriptive text of this color specification.

Constructor & Destructor Documentation

◆ Colors() [1/2]

zxeco::Colors::Colors ( void )

inline

Default constructor: default color attribute plus no inverse or over.

Definition at line 423 of file ZXColors.h.

◆ Colors() [2/2]

zxeco::Colors::Colors	(	AttrColors	cc,
		Inverse	inv,
		Over	ov
	)

inline

Constructor from an attribute specification plus inverse and over.

Definition at line 426 of file ZXColors.h.

Member Function Documentation

◆ inverse()

ColorModVal zxeco::Colors::inverse ( void ) const

inlinenoexcept

Get the inverse mode.

Definition at line 431 of file ZXColors.h.

◆ setInverse() [1/2]

void zxeco::Colors::setInverse ( ColorModVal inv )

inlinenoexcept

Change the inverse mode.

Definition at line 434 of file ZXColors.h.

◆ setInverse() [2/2]

void zxeco::Colors::setInverse ( bool i = true )

inlinenoexcept

< Change the inverse element to one of ON or OFF.

Definition at line 437 of file ZXColors.h.

◆ over()

ColorModVal zxeco::Colors::over ( void ) const

inlinenoexcept

Get the over mode.

Definition at line 441 of file ZXColors.h.

◆ setOver() [1/2]

void zxeco::Colors::setOver ( ColorModVal ov )

inlinenoexcept

Change the over mode.

Definition at line 444 of file ZXColors.h.

◆ setOver() [2/2]

void zxeco::Colors::setOver ( bool o = true )

inlinenoexcept

Change the over element to one of ON or OFF.

Definition at line 447 of file ZXColors.h.

◆ operator<<() [1/6]

Colors & zxeco::Colors::operator<< ( Paper p )

inlinenoexcept

Definition at line 450 of file ZXColors.h.

◆ operator<<() [2/6]

Colors & zxeco::Colors::operator<< ( Ink i )

inlinenoexcept

Definition at line 451 of file ZXColors.h.

◆ operator<<() [3/6]

Colors & zxeco::Colors::operator<< ( Bright b )

inlinenoexcept

Definition at line 452 of file ZXColors.h.

◆ operator<<() [4/6]

Colors & zxeco::Colors::operator<< ( Flash f )

inlinenoexcept

Definition at line 453 of file ZXColors.h.

◆ operator<<() [5/6]

Colors & zxeco::Colors::operator<< ( Inverse f )

inlinenoexcept

Definition at line 454 of file ZXColors.h.

◆ operator<<() [6/6]

Colors & zxeco::Colors::operator<< ( Over o )

inlinenoexcept

Definition at line 455 of file ZXColors.h.

◆ to_string()

std::string zxeco::Colors::to_string ( void ) const

inline

Return a text with the information of the colors.

Definition at line 457 of file ZXColors.h.

Enumeration Type Documentation

◆ ColorBaseType

enum zxeco::ColorBaseType : uint8_t

#include <ZXColors.h>

Main color constants.

Enumerator
WHITE	A basic color.
NUMBASICCOLORS	Number of basic colors.
TRANSPARENT	Setting ink or paper to this will print characters without changing the corresponding attribute existing at that position.
CONTRAST	Setting paper or ink to this make the corresponding color to be in contrast to the other (i.e., either BLACK or WHITE).

Definition at line 46 of file ZXColors.h.

Description

Namespaces

Classes

Enumerations

Class Documentation

◆ zxeco::Flash

Public Member Functions

Constructor & Destructor Documentation

◆ Flash()

Member Function Documentation

◆ operator ColorModVal()

◆ zxeco::Bright

Public Member Functions

Constructor & Destructor Documentation

◆ Bright()

Member Function Documentation

◆ operator ColorModVal()

◆ zxeco::Inverse

Public Member Functions

Constructor & Destructor Documentation

◆ Inverse()

Member Function Documentation

◆ operator ColorModVal()

◆ zxeco::Over

Public Member Functions

Constructor & Destructor Documentation

◆ Over()

Member Function Documentation

◆ operator ColorModVal()

◆ zxeco::BasicColor

Public Member Functions

Constructor & Destructor Documentation

◆ BasicColor()

Member Function Documentation

◆ operator ColorBaseType()

◆ contrasting()

◆ setNext()

◆ zxeco::BrightColor

Static Public Attributes

Public Member Functions

Constructor & Destructor Documentation

◆ BrightColor() [1/3]

◆ BrightColor() [2/3]

◆ BrightColor() [3/3]

Member Function Documentation

◆ color()

◆ bright()

◆ linear()

◆ rgbColor()

Member Data Documentation

◆ NUMLINEARCOLORS

◆ FIRSTLINEARCOLORWBRIGHT

◆ zxeco::PrintColor

Public Member Functions

Constructor & Destructor Documentation

◆ PrintColor() [1/2]

◆ PrintColor() [2/2]

Member Function Documentation

◆ operator ColorBaseType()

◆ isBasic()

◆ zxeco::Paper

Public Member Functions

Constructor & Destructor Documentation

◆ Paper()

◆ zxeco::Ink

Public Member Functions

Constructor & Destructor Documentation

◆ Ink()

◆ zxeco::AttrColors

Public Member Functions

Constructor & Destructor Documentation

◆ AttrColors() [1/2]

◆ AttrColors() [2/2]

Member Function Documentation

◆ toAttr()

◆ flash()

◆ bright()

◆ paper()

◆ ink()

◆ setFlash() [1/2]
