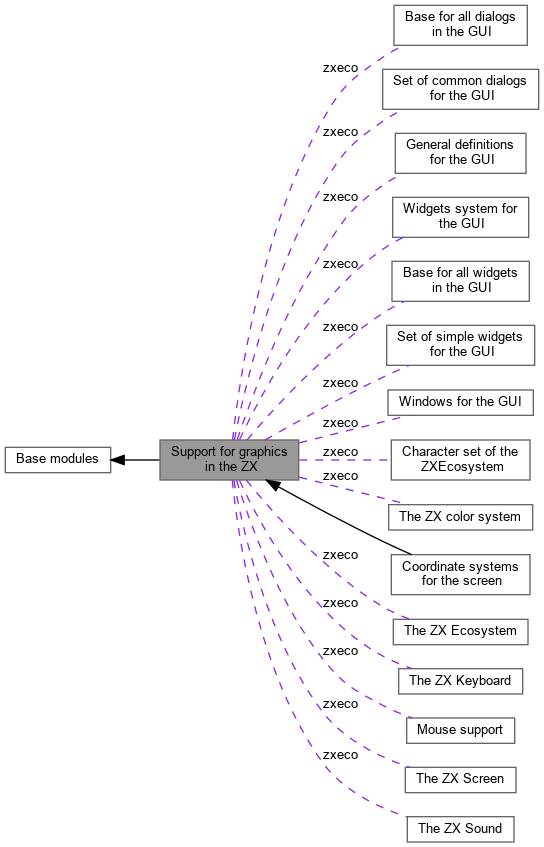

These classes provide support for managing graphics.
NOTE:
-These classes are not thread-safe.
This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.
Modules | |
| Coordinate systems for the screen | |
Namespaces | |
| namespace | zxeco |
| The main namespace of the library, that spans across all the zx modules. | |
Classes | |
| struct | zxeco::CoordT |
| Base class for all coordinate trait classes. More... | |
| struct | zxeco::DistT |
| Base class for all distance trait classes. More... | |
| struct | zxeco::CharCoordT |
| A class that makes CharCoord a different, distinguishable type from others. More... | |
| struct | zxeco::PixelCoordT |
| A class that makes PixelCoord a different, distinguishable type from others. More... | |
| struct | zxeco::CharDistT |
| A class that makes CharDist a different, distinguishable type from others. More... | |
| struct | zxeco::PixelDistT |
| A class that makes PixelDist a different, distinguishable type from others. More... | |
| struct | zxeco::IntDistT |
| A class that makes IntDist a different, distinguishable type from others. More... | |
| struct | zxeco::BorderCoordT |
| A class that makes BorderCoord a different, distinguishable type from others. More... | |
| struct | zxeco::BorderDistT |
| A class that makes BorderDist a different, distinguishable type from others. More... | |
| class | zxeco::Cursor< WRES, HRES > |
| A cursor on screen that uses the given coordinates resolution. More... | |
| class | zxeco::Area< WRES, HRES > |
| An area on the screen that uses the given distance resolutions. More... | |
| struct | zxeco::Rect< WRES, HRES > |
| A rectangle placed on the screen that uses the given resolutions. More... | |

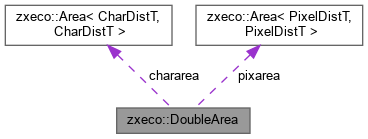

| class | zxeco::DoubleArea |
| An area with both char and pixel resolutions, possibly synchronized. More... | |

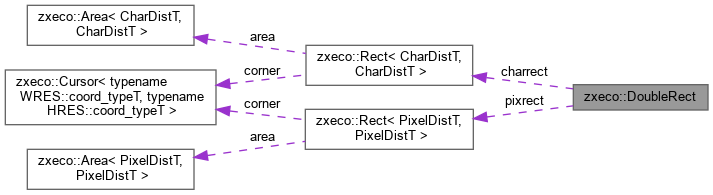

| class | zxeco::DoubleRect |
| A rectangle with both char and pixel resolutions, possibly synchronized. More... | |

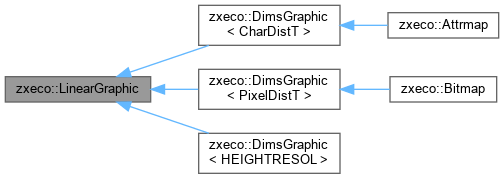

| class | zxeco::LinearGraphic |
| A rectangular graphic block. More... | |

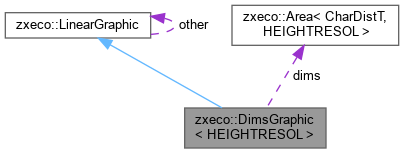

| class | zxeco::DimsGraphic< HEIGHTRESOL > |
| A graphic that has certain 2D dimensions and coordinates. More... | |
| class | zxeco::Bitmap |
| A graphic that contains a bitmap, i.e., it has pixel resolution in height. More... | |

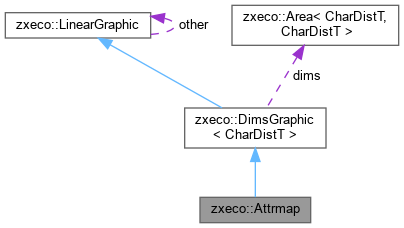

| class | zxeco::Attrmap |
| A graphic that contains an attrmap, i.e., it has char resolution in height. More... | |

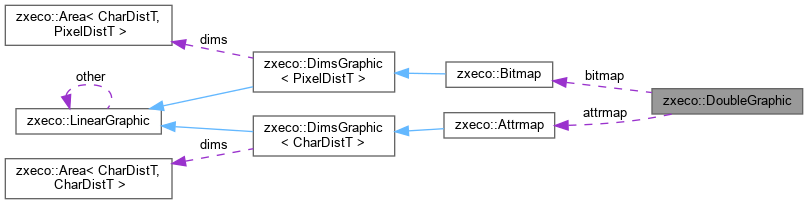

| class | zxeco::DoubleGraphic |
| A bitmap plus an attrmap, possibly synchronized. More... | |
| struct | zxeco::DoubleGraphic::PNGConversionParms |
| Parameters for the conversion of PNG images into DoubleGraphic. More... | |
| class | zxeco::DoubleGraphic::DitheringSystem::Color |
Functions | |
| template<> | |
| constexpr uint8_t | zxeco::LinearGraphic::doGraphOp< LinearGraphic::GraphOp::COPY > (uint8_t b0, uint8_t b1) noexcept |

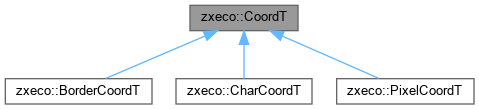

| struct zxeco::CoordT |
Base class for all coordinate trait classes.
This serves to refer to any coordinate class. If the compiler implements empty base class optimization, its size will not be embedded in the size of derived classes.
Definition at line 254 of file ZXGraphics.h.

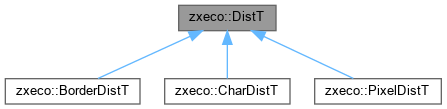

| struct zxeco::DistT |
Base class for all distance trait classes.
This serves to refer to any distance class. If the compiler implements empty base class optimization, its size will not be embedded in the size of derived classes.
Definition at line 262 of file ZXGraphics.h.
| struct zxeco::CharCoordT |
A class that makes CharCoord a different, distinguishable type from others.
Definition at line 267 of file ZXGraphics.h.
Public Types | |
| using | type = CharCoord |
| Numerical type corresponding to this class. More... | |
Static Public Attributes | |
| static constexpr const char * | name = "CharC" |
| Name of numeric type. More... | |
Public Attributes | |
| type | value |
| To hold values of that type. More... | |
| struct zxeco::PixelCoordT |
A class that makes PixelCoord a different, distinguishable type from others.
Definition at line 277 of file ZXGraphics.h.
Public Types | |
| using | type = PixelCoord |
| Numerical type corresponding to this class. More... | |
Static Public Attributes | |
| static constexpr const char * | name = "PixC" |
| Name of numeric type. More... | |
Public Attributes | |
| type | value |
| To hold values of that type. More... | |
| struct zxeco::CharDistT |
A class that makes CharDist a different, distinguishable type from others.
Definition at line 287 of file ZXGraphics.h.
Public Types | |
| using | type = CharDist |
| Numerical type corresponding to this class. More... | |
| using | coord_typeT = CharCoordT |
| Corresponding coord type trait. More... | |
Static Public Attributes | |
| static constexpr const char * | name = "CharD" |
| Name of numeric type. More... | |
Public Attributes | |
| type | value |
| To hold values of that type. More... | |
| struct zxeco::PixelDistT |
A class that makes PixelDist a different, distinguishable type from others.
Definition at line 299 of file ZXGraphics.h.
Public Types | |
| using | type = PixelDist |
| Numerical type corresponding to this class. More... | |
| using | coord_typeT = PixelCoordT |
| Corresponding coord type trait. More... | |
Static Public Attributes | |
| static constexpr const char * | name = "PixD" |
| Name of numeric type. More... | |
Public Attributes | |
| type | value |
| To hold values of that type. More... | |
| struct zxeco::IntDistT |
A class that makes IntDist a different, distinguishable type from others.
This class does not follow the same hierarchy as the previous ones.
Definition at line 312 of file ZXGraphics.h.
Public Types | |
| using | type = IntDist |
| Numerical type corresponding to this class. More... | |
Static Public Attributes | |
| static constexpr const char * | name = "IntD" |
| Name of numeric type. More... | |
Public Attributes | |
| type | value |
| To hold values of that type. More... | |
| struct zxeco::BorderCoordT |
A class that makes BorderCoord a different, distinguishable type from others.
Definition at line 322 of file ZXGraphics.h.
Public Types | |
| using | type = BorderCoord |
| Numerical type corresponding to this class. More... | |
Static Public Attributes | |
| static constexpr const char * | name = "BorderC" |
| Name of numeric type. More... | |
Public Attributes | |
| type | value |
| To hold values of that type. More... | |
| struct zxeco::BorderDistT |
A class that makes BorderDist a different, distinguishable type from others.
Definition at line 332 of file ZXGraphics.h.
Public Types | |
| using | type = BorderDist |
| Numerical type corresponding to this class. More... | |
| using | coord_typeT = BorderCoordT |
| Corresponding coord type trait. More... | |
Static Public Attributes | |
| static constexpr const char * | name = "BorderD" |
| Name of numeric type. More... | |
Public Attributes | |
| type | value |
| To hold values of that type. More... | |
| class zxeco::Cursor |
A cursor on screen that uses the given coordinates resolution.
Coordinates are 0,0 at the top-left of the possible area for the cursor, and they increase rightwards and downwards.
Definition at line 358 of file ZXGraphics.h.
Public Types | |
| using | WidthType = WRES |
| Type used for the width dimension. More... | |
| using | HeightType = HRES |
| Type used for the height dimension. More... | |
Static Public Member Functions | |
| static const Cursor & | theZero (void) noexcept |
| < Return a reference to an inmutable zero cursorof this type. More... | |
| static Cursor | max (const Cursor &c0, const Cursor &c1) noexcept |
| < Return a copy of the one of C0, C1 that is more to the right and below. More... | |
Public Attributes | |
| WidthType::type | x |
| Coordinate in width (horizontally). More... | |
| HeightType::type | y |
| Coordinates in height (vertically). More... | |
Public Member Functions | |
| Cursor (typename WidthType::type xc, typename HeightType::type yc) | |
| Constructor, from the numerical coord types. More... | |
| Cursor (WidthType xc, HeightType yc) | |
| Constructor from the trait coord types. More... | |
| void | newRow (void) noexcept |
| Go down one row resetting x (y <- y + 1 & x <- 0). More... | |
| void | newCol (void) noexcept |
| Go right one column (x <- x + 1). More... | |
| void | incRow (void) noexcept |
| Go down one row without resetting x. More... | |
| bool | zero (void) const noexcept |
| Return TRUE if the cursor is placed at (0,0). */. More... | |
| bool | before (const Cursor &oth) const noexcept |
| < Return TRUE if THIS is placed before OTH in the plane (linearly). More... | |
| bool | rightBelow (const Cursor &oth) const noexcept |
| < Return TRUE if THIS is placed to the right and below of OTH. More... | |
| IntDist | xDiff (const Cursor &oth) const noexcept |
| < Return the signed distance in X from OTH to THIS. More... | |
| IntDist | yDiff (const Cursor &oth) const noexcept |
| < Return the signed distance in Y from OTH to THIS. More... | |
| void | addDiff (IntDist xdiff, IntDist ydiff) noexcept |
| < Add the given signed distances to both coordinates. More... | |
| bool | operator== (const Cursor &oth) const noexcept |
| < Return TRUE if both cursors are placed at the same place. More... | |
| bool | operator!= (const Cursor &oth) const noexcept |
| < Unequality. More... | |
| Cursor | operator+ (const Cursor &oth) const |
| < Return the sum of both cursors. More... | |
| Cursor & | operator+= (const Cursor &oth) |
| Make the sum and return the result. More... | |
| Cursor | operator- (const Cursor &oth) const |
| < Return the cursor THIS relative to OTH, or throw if result is negative. More... | |
| Cursor & | operator-= (const Cursor &oth) |
| Make the substraction and return the result. More... | |
| std::string | to_string (bool withtype=true) const |
| < Return a string with the textual information of the area. More... | |
| class zxeco::Area |
An area on the screen that uses the given distance resolutions.
Definition at line 503 of file ZXGraphics.h.
Public Types | |
| using | WidthType = WRES |
| Type used for the width dimension. More... | |
| using | HeightType = HRES |
| Type used for the height dimension. More... | |
| using | CursorType = Cursor< typename WRES::coord_typeT, typename HRES::coord_typeT > |
| Cursor. More... | |
Static Public Member Functions | |
| static const Area & | theEmpty (void) noexcept |
| Return a reference to an inmutable empty area of this type. More... | |
Public Attributes | |
| WidthType::type | width |
| width of the area. More... | |
| HeightType::type | height |
| height of the area. More... | |
Public Member Functions | |
| Area (typename WidthType::type w, typename HeightType::type h) | |
| Default constructor, from the numerical dist types. More... | |
| Area (WidthType w, HeightType h) | |
| Constructor from the trait dist types. More... | |
| Area (const CursorType &c0, const CursorType &c1) | |
| Constructor of the area within C0 (top-left) and C1 (bottom-right). More... | |
| bool | empty (void) const noexcept |
| Return TRUE if the area is empty. More... | |
| size_t | area (void) const noexcept |
| < Return the number of cells in the area. More... | |
| bool | containedInto (const Area &oth) const noexcept |
| < Return TRUE if this area can be contained into OTH or if they are equal More... | |
| Area | operator+ (const Area &oth) const noexcept |
| < Add width and height of OTH to THIS. More... | |
| Area & | operator+= (const Area &oth) noexcept |
| < Add to THIS the width and height of OTH. More... | |
| Area | operator- (const Area &oth) const |
| < Substract OTH dimensions from THIS dims and return the result, or throw More... | |
| Area & | operator-= (const Area &oth) |
| Substract OTH from THIS and return THIS. Throw if error. More... | |
| Area | operator* (const Area &oth) const |
| < Intersect OTH dimensions to THIS dims and return the result. More... | |
| Area & | operator*= (const Area &oth) |
| Intersect OTH to THIS and return THIS. More... | |
| bool | operator== (const Area &oth) const noexcept |
| < Equality. More... | |
| bool | operator!= (const Area &oth) const noexcept |
| < Unequality. More... | |
| std::string | to_string (bool withtype=true) const |
| < Return a string with the textual information of the area. More... | |
| struct zxeco::Rect |
A rectangle placed on the screen that uses the given resolutions.
The corresponding coord resolutions are deduced from the given dist resolutions.
Definition at line 643 of file ZXGraphics.h.
Public Types | |
| using | cursor_type = Cursor< typename WRES::coord_typeT, typename HRES::coord_typeT > |
| using | area_type = Area< WRES, HRES > |
Static Public Member Functions | |
| static const Rect & | theEmpty (void) noexcept |
| Return a reference to an inmutable empty rectangle of this type. More... | |
Public Attributes | |
| cursor_type | corner |
| Top-left corner. More... | |
| area_type | area |
| Width and height. More... | |
Public Member Functions | |
| Rect (const cursor_type &c=cursor_type{0, 0}, const area_type &a=area_type{0, 0}) | |
| Default constructor: empty rectangle. More... | |
| bool | empty (void) const noexcept |
| Return TRUE if the rectangle area is empty. More... | |
| bool | contains (const cursor_type &cur) const noexcept |
| Return TRUE if CUR is inside the rectangle. More... | |
| cursor_type | bottomRight (void) const noexcept |
| < Return the coordinates of the bottom-right extreme within the rectangle More... | |
| bool | applyConstrainedDiffs (IntDist &xdiff, IntDist &ydiff, const Rect &oth) noexcept |
| Apply the given increments to the corner of THIS, keeping it within OTH. More... | |
| Rect | compose (const Rect &reloth) const |
| < Return the RELOTH region of THIS as a rectangle. More... | |
| Rect | subRect (const cursor_type &reltopleft) const |
| < Return the absolute sub-rectangle that starts at RELTOPLEFT within this More... | |
| Rect | intersect (const Rect &oth) const noexcept |
| Return the rectangle resulting from the intersection of this and OTH. More... | |
| Rect | align_area (const area_type &areaneeded, char horalign, char vertalign) const |
| Return the portion of this rectangle that contains AREANEEDED aligned. More... | |
| bool | operator== (const Rect &oth) const noexcept |
| < Equality. More... | |
| bool | operator!= (const Rect &oth) const noexcept |
| < Unequality. More... | |
| std::string | to_string (bool withtype=true) const |
| < Return a string with the textual information of the rectangle. More... | |
| class zxeco::DoubleArea |
An area with both char and pixel resolutions, possibly synchronized.
Definition at line 768 of file ZXGraphics.h.
Public Attributes | |
| CharArea | chararea |
| Char resolution. More... | |
| PixArea | pixarea |
| Pixel resolution. More... | |
Public Member Functions | |
| std::string | to_string (void) const |
| DoubleArea (const CharArea &area=CharArea::theEmpty()) | |
| DoubleArea (const CharArea &carea, const PixArea &parea) | |
| class zxeco::DoubleRect |
A rectangle with both char and pixel resolutions, possibly synchronized.
Definition at line 798 of file ZXGraphics.h.
Public Attributes | |
| CharRect | charrect |
| Char resolution. More... | |
| PixRect | pixrect |
| Pixel resolution. More... | |
Public Member Functions | |
| std::string | to_string (void) const |
| DoubleRect (const CharRect &rect=CharRect::theEmpty()) | |
| DoubleRect (const CharRect &crect, const PixRect &prect) | |
| class zxeco::LinearGraphic |
A rectangular graphic block.
Definition at line 833 of file ZXGraphics.h.
Public Types | |
| enum class | GraphOp : unsigned char { GraphOp::COPY , GraphOp::INV , GraphOp::OR , GraphOp::INVOR , GraphOp::AND , GraphOp::INVAND , GraphOp::XOR , GraphOp::INVXOR } |
| Possible operations on Graphics. More... | |
Static Public Member Functions | |
| template<LinearGraphic::GraphOp op> | |
| static constexpr uint8_t | doGraphOp (uint8_t b0, uint8_t b1) noexcept |
| Return the result of doing operation OP on byte B0 with byte B1. | |
Public Member Functions | |
| LinearGraphic (void) | |
| Default constructor: empty graphic. | |
| LinearGraphic (size_t s) | |
| Construct an empty graphic of the given size, yet to be filled. More... | |
| LinearGraphic (size_t s, uint8_t b) | |
| Construct a graphic of the given size filled with 1 byte (B). | |
| LinearGraphic (uint8_t *bs, size_t s) | |
| Construct a graphic that is held externally (NO OWNERSHIP to this). More... | |
| LinearGraphic (LinearGraphic &oth, size_t firstoff, size_t chunksize, size_t gap, size_t numchunks) | |
| Construct a graphic referring to part of another one (no ownership). More... | |
| LinearGraphic (const LinearGraphic &)=delete | |
| LinearGraphic & | operator= (const LinearGraphic &)=delete |
| LinearGraphic (LinearGraphic &&og) | |
| LinearGraphic & | operator= (LinearGraphic &&og) |
| bool | external (void) const noexcept |
| Whether the object refers to part of another linear graphic. More... | |
| bool | owner (void) const noexcept |
| Whether the object owns the graphical data. More... | |
| size_t | size (void) const noexcept |
| Size in memory, in bytes. More... | |
| bool | oneByte (void) const noexcept |
| Return TRUE if the graphic content is compressed into one byte. More... | |
| uint8_t | getByte (size_t offset) const |
| Get the byte at the given offset, throwing if it is out of range. | |
| uint8_t | getByteUnsafe (size_t offset) const noexcept |
| Get the byte at the given offset without checking out of range. | |
| uint8_t * | getAllBytes (void) |
| Return a pointer to the data or throw if it is onebyte or external. | |
| void | setByte (size_t offset, uint8_t b) |
| Change the byte at the given offset inside the data. More... | |
| void | setByteUnsafe (size_t offset, uint8_t b) noexcept |
| Change the byte at the given offset without checking anything. More... | |
| void | setAllBytes (uint8_t b) noexcept |
| Set all bytes of the graphic to the given value. More... | |
| void | merge (size_t destoffset, const LinearGraphic &oth, size_t origoffset, size_t howmany, GraphOp op=GraphOp::COPY) |
| Merge HOWMANY bytes from OTH (at ORIGOFFSET) into this (at DESTOFFSET). More... | |
| void | mergeUnsafe (size_t destoffset, const LinearGraphic &oth, size_t origoffset, size_t howmany, GraphOp op=GraphOp::COPY) |
| Merge HOWMANY bytes from OTH (at ORIGOFFSET) into this (at DESTOFFSET). More... | |
| int | compare (const LinearGraphic &oth, bool withinv=false) const noexcept |
| Compare this graphic to OTH and return 1 if both are equal. More... | |
| size_t | similarity (const LinearGraphic &oth) const noexcept |
| Return a measure of the bitmap similarity (bit by bit) between both. More... | |
| std::string | to_string (void) const |
| Return a text with the info of the graphic. | |
Protected Member Functions | |
| void | clear (void) |
| void | reset (void) |
| void | moveFrom (LinearGraphic &&og) |
Protected Attributes | |
| bool | owner_ |
| size_t | s_ |
| class zxeco::DimsGraphic |
A graphic that has certain 2D dimensions and coordinates.
The width coordinate is restricted to CharCoordT.
Definition at line 1008 of file ZXGraphics.h.
Public Types | |
| using | CursorType = Cursor< CharCoordT, typename HEIGHTRESOL::coord_typeT > |
| using | AreaType = Area< CharDistT, HEIGHTRESOL > |
| using | RectType = Rect< CharDistT, HEIGHTRESOL > |
 Public Types inherited from zxeco::LinearGraphic | |
| enum class | GraphOp : unsigned char { GraphOp::COPY , GraphOp::INV , GraphOp::OR , GraphOp::INVOR , GraphOp::AND , GraphOp::INVAND , GraphOp::XOR , GraphOp::INVXOR } |
| Possible operations on Graphics. More... | |
Public Attributes | |
| AreaType | dims |
| Dimensions of the graphic. More... | |
Public Member Functions | |
| DimsGraphic (void) | |
| Default constructor: empty graphic. More... | |
| DimsGraphic (const AreaType &a) | |
| Construct an undefined graphic of the given dimensions, to be filled. More... | |
| DimsGraphic (const AreaType &a, uint8_t b) | |
| Construct a graphic of the given dimensions filled with one byte (B). More... | |
| DimsGraphic (uint8_t *bs, const AreaType &a) | |
| Construct a graphic that is held externally (NO OWNERSHIP to this). More... | |
| DimsGraphic (DimsGraphic &g, const RectType ®ion, bool copy=true) | |
| Construct a graphic that refers to a region within another one. More... | |
| DimsGraphic (DimsGraphic &&oth) | |
| Move constructor. More... | |
| DimsGraphic & | operator= (DimsGraphic &&oth) |
| Move assignment. More... | |
| size_t | offset (const CursorType &pos) const |
| Get the offset corresponding to the given coordinates in the graphic. More... | |
| CursorType | coords (size_t offset) const |
| Get the coordinates of the given offset, if it is valid, or throws. More... | |
| uint8_t | getByte (const CursorType &pos) const |
| < Unhide the linear getByte() method hidden by the new getByte(). More... | |
| void | setByte (const CursorType &pos, uint8_t b) |
| < Unhide the linear setByte() method hidden by the new setByte(). More... | |
| void | merge (const DimsGraphic &oth, const CursorType &pos, GraphOp mode=GraphOp::COPY) |
| Merge OTH at the given coordinates of this object with the given mode. More... | |
| HEIGHTRESOL::type | scrollUp (typename HEIGHTRESOL::type howmany, typename HEIGHTRESOL::type upperrow, uint8_t fillb) |
| Scroll HOWMANY rows of the graphic up, beginning at y-coord UPPERROW. More... | |
| std::string | to_string (void) const |
| Return a text with the info of the graphic. More... | |
| uint8_t | getByte (size_t offset) const |
| Get the byte at the given offset, throwing if it is out of range. | |
| void | setByte (size_t offset, uint8_t b) |
| Change the byte at the given offset inside the data. More... | |
| Public Member Functions inherited from zxeco::LinearGraphic | |
| LinearGraphic (void) | |
| Default constructor: empty graphic. | |
| LinearGraphic (size_t s) | |
| Construct an empty graphic of the given size, yet to be filled. More... | |
| LinearGraphic (size_t s, uint8_t b) | |
| Construct a graphic of the given size filled with 1 byte (B). | |
| LinearGraphic (uint8_t *bs, size_t s) | |
| Construct a graphic that is held externally (NO OWNERSHIP to this). More... | |
| LinearGraphic (LinearGraphic &oth, size_t firstoff, size_t chunksize, size_t gap, size_t numchunks) | |
| Construct a graphic referring to part of another one (no ownership). More... | |
| LinearGraphic (const LinearGraphic &)=delete | |
| LinearGraphic & | operator= (const LinearGraphic &)=delete |
| LinearGraphic (LinearGraphic &&og) | |
| LinearGraphic & | operator= (LinearGraphic &&og) |
| bool | external (void) const noexcept |
| Whether the object refers to part of another linear graphic. More... | |
| bool | owner (void) const noexcept |
| Whether the object owns the graphical data. More... | |
| size_t | size (void) const noexcept |
| Size in memory, in bytes. More... | |
| bool | oneByte (void) const noexcept |
| Return TRUE if the graphic content is compressed into one byte. More... | |
| uint8_t | getByte (size_t offset) const |
| Get the byte at the given offset, throwing if it is out of range. | |
| uint8_t | getByteUnsafe (size_t offset) const noexcept |
| Get the byte at the given offset without checking out of range. | |
| uint8_t * | getAllBytes (void) |
| Return a pointer to the data or throw if it is onebyte or external. | |
| void | setByte (size_t offset, uint8_t b) |
| Change the byte at the given offset inside the data. More... | |
| void | setByteUnsafe (size_t offset, uint8_t b) noexcept |
| Change the byte at the given offset without checking anything. More... | |
| void | setAllBytes (uint8_t b) noexcept |
| Set all bytes of the graphic to the given value. More... | |
| void | merge (size_t destoffset, const LinearGraphic &oth, size_t origoffset, size_t howmany, GraphOp op=GraphOp::COPY) |
| Merge HOWMANY bytes from OTH (at ORIGOFFSET) into this (at DESTOFFSET). More... | |
| void | mergeUnsafe (size_t destoffset, const LinearGraphic &oth, size_t origoffset, size_t howmany, GraphOp op=GraphOp::COPY) |
| Merge HOWMANY bytes from OTH (at ORIGOFFSET) into this (at DESTOFFSET). More... | |
| int | compare (const LinearGraphic &oth, bool withinv=false) const noexcept |
| Compare this graphic to OTH and return 1 if both are equal. More... | |
| size_t | similarity (const LinearGraphic &oth) const noexcept |
| Return a measure of the bitmap similarity (bit by bit) between both. More... | |
| std::string | to_string (void) const |
| Return a text with the info of the graphic. | |
Additional Inherited Members | |
| Static Public Member Functions inherited from zxeco::LinearGraphic | |
| template<LinearGraphic::GraphOp op> | |
| static constexpr uint8_t | doGraphOp (uint8_t b0, uint8_t b1) noexcept |
| Return the result of doing operation OP on byte B0 with byte B1. | |
| Protected Member Functions inherited from zxeco::LinearGraphic | |
| void | clear (void) |
| void | reset (void) |
| void | moveFrom (LinearGraphic &&og) |
| Protected Attributes inherited from zxeco::LinearGraphic | |
| bool | owner_ |
| size_t | s_ |
| void zxeco::LinearGraphic::setByte | ( | size_t | offset, |
| uint8_t | b | ||
| ) |
Change the byte at the given offset inside the data.
If the graphic is onebyte or the offset is invalid, throw an exception.
| class zxeco::Bitmap |
A graphic that contains a bitmap, i.e., it has pixel resolution in height.
Definition at line 1150 of file ZXGraphics.h.
Public Types | |
| using | BaseGr = DimsGraphic< PixelDistT > |
| Public Types inherited from zxeco::DimsGraphic< PixelDistT > | |
| using | CursorType = Cursor< CharCoordT, typename HEIGHTRESOL::coord_typeT > |
| using | AreaType = Area< CharDistT, PixelDistT > |
| using | RectType = Rect< CharDistT, PixelDistT > |
| Public Types inherited from zxeco::LinearGraphic | |
| enum class | GraphOp : unsigned char { GraphOp::COPY , GraphOp::INV , GraphOp::OR , GraphOp::INVOR , GraphOp::AND , GraphOp::INVAND , GraphOp::XOR , GraphOp::INVXOR } |
| Possible operations on Graphics. More... | |
Public Member Functions | |
| Bitmap (DesktopInterface &desktop, const std::string &pngfile) | |
| < Reuse all constructor from Gr<PixelDistT>. More... | |
| Bitmap (uint8_t ascii, uint8_t *chartable=nullptr) | |
| Construct a bitmap for a ZX ascii char (including block-graphic ones). | |
| void | merge (const Bitmap &oth, const PixCursor &pos, GraphOp mode=GraphOp::COPY) |
| < Unhide the base merge() method hidden by the new merge(). More... | |
| std::string | to_string (void) const |
| Return a text with the info of the graphic. More... | |
| Public Member Functions inherited from zxeco::DimsGraphic< PixelDistT > | |
| DimsGraphic (void) | |
| Default constructor: empty graphic. More... | |
| DimsGraphic (const AreaType &a) | |
| Construct an undefined graphic of the given dimensions, to be filled. More... | |
| DimsGraphic (const AreaType &a, uint8_t b) | |
| Construct a graphic of the given dimensions filled with one byte (B). More... | |
| DimsGraphic (uint8_t *bs, const AreaType &a) | |
| Construct a graphic that is held externally (NO OWNERSHIP to this). More... | |
| DimsGraphic (DimsGraphic &g, const RectType ®ion, bool copy=true) | |
| Construct a graphic that refers to a region within another one. More... | |
| DimsGraphic (DimsGraphic &&oth) | |
| Move constructor. More... | |
| DimsGraphic & | operator= (DimsGraphic &&oth) |
| Move assignment. More... | |
| size_t | offset (const CursorType &pos) const |
| Get the offset corresponding to the given coordinates in the graphic. More... | |
| CursorType | coords (size_t offset) const |
| Get the coordinates of the given offset, if it is valid, or throws. More... | |
| uint8_t | getByte (const CursorType &pos) const |
| < Unhide the linear getByte() method hidden by the new getByte(). More... | |
| uint8_t | getByte (size_t offset) const |
| Get the byte at the given offset, throwing if it is out of range. | |
| void | setByte (const CursorType &pos, uint8_t b) |
| < Unhide the linear setByte() method hidden by the new setByte(). More... | |
| void | setByte (size_t offset, uint8_t b) |
| Change the byte at the given offset inside the data. More... | |
| void | merge (const DimsGraphic &oth, const CursorType &pos, GraphOp mode=GraphOp::COPY) |
| Merge OTH at the given coordinates of this object with the given mode. More... | |
| HEIGHTRESOL::type | scrollUp (typename HEIGHTRESOL::type howmany, typename HEIGHTRESOL::type upperrow, uint8_t fillb) |
| Scroll HOWMANY rows of the graphic up, beginning at y-coord UPPERROW. More... | |
| std::string | to_string (void) const |
| Return a text with the info of the graphic. More... | |
| Public Member Functions inherited from zxeco::LinearGraphic | |
| LinearGraphic (void) | |
| Default constructor: empty graphic. | |
| LinearGraphic (size_t s) | |
| Construct an empty graphic of the given size, yet to be filled. More... | |
| LinearGraphic (size_t s, uint8_t b) | |
| Construct a graphic of the given size filled with 1 byte (B). | |
| LinearGraphic (uint8_t *bs, size_t s) | |
| Construct a graphic that is held externally (NO OWNERSHIP to this). More... | |
| LinearGraphic (LinearGraphic &oth, size_t firstoff, size_t chunksize, size_t gap, size_t numchunks) | |
| Construct a graphic referring to part of another one (no ownership). More... | |
| LinearGraphic (const LinearGraphic &)=delete | |
| LinearGraphic & | operator= (const LinearGraphic &)=delete |
| LinearGraphic (LinearGraphic &&og) | |
| LinearGraphic & | operator= (LinearGraphic &&og) |
| bool | external (void) const noexcept |
| Whether the object refers to part of another linear graphic. More... | |
| bool | owner (void) const noexcept |
| Whether the object owns the graphical data. More... | |
| size_t | size (void) const noexcept |
| Size in memory, in bytes. More... | |
| bool | oneByte (void) const noexcept |
| Return TRUE if the graphic content is compressed into one byte. More... | |
| uint8_t | getByte (size_t offset) const |
| Get the byte at the given offset, throwing if it is out of range. | |
| uint8_t | getByteUnsafe (size_t offset) const noexcept |
| Get the byte at the given offset without checking out of range. | |
| uint8_t * | getAllBytes (void) |
| Return a pointer to the data or throw if it is onebyte or external. | |
| void | setByte (size_t offset, uint8_t b) |
| Change the byte at the given offset inside the data. More... | |
| void | setByteUnsafe (size_t offset, uint8_t b) noexcept |
| Change the byte at the given offset without checking anything. More... | |
| void | setAllBytes (uint8_t b) noexcept |
| Set all bytes of the graphic to the given value. More... | |
| void | merge (size_t destoffset, const LinearGraphic &oth, size_t origoffset, size_t howmany, GraphOp op=GraphOp::COPY) |
| Merge HOWMANY bytes from OTH (at ORIGOFFSET) into this (at DESTOFFSET). More... | |
| void | mergeUnsafe (size_t destoffset, const LinearGraphic &oth, size_t origoffset, size_t howmany, GraphOp op=GraphOp::COPY) |
| Merge HOWMANY bytes from OTH (at ORIGOFFSET) into this (at DESTOFFSET). More... | |
| int | compare (const LinearGraphic &oth, bool withinv=false) const noexcept |
| Compare this graphic to OTH and return 1 if both are equal. More... | |
| size_t | similarity (const LinearGraphic &oth) const noexcept |
| Return a measure of the bitmap similarity (bit by bit) between both. More... | |
| std::string | to_string (void) const |
| Return a text with the info of the graphic. | |
Additional Inherited Members | |
| Static Public Member Functions inherited from zxeco::LinearGraphic | |
| template<LinearGraphic::GraphOp op> | |
| static constexpr uint8_t | doGraphOp (uint8_t b0, uint8_t b1) noexcept |
| Return the result of doing operation OP on byte B0 with byte B1. | |
| Public Attributes inherited from zxeco::DimsGraphic< PixelDistT > | |
| AreaType | dims |
| Dimensions of the graphic. More... | |
| Protected Member Functions inherited from zxeco::LinearGraphic | |
| void | clear (void) |
| void | reset (void) |
| void | moveFrom (LinearGraphic &&og) |
| Protected Attributes inherited from zxeco::LinearGraphic | |
| bool | owner_ |
| size_t | s_ |
| class zxeco::Attrmap |
A graphic that contains an attrmap, i.e., it has char resolution in height.
Definition at line 1220 of file ZXGraphics.h.
Public Types | |
| using | BaseGr = DimsGraphic< CharDistT > |
| Public Types inherited from zxeco::DimsGraphic< CharDistT > | |
| using | CursorType = Cursor< CharCoordT, typename HEIGHTRESOL::coord_typeT > |
| using | AreaType = Area< CharDistT, CharDistT > |
| using | RectType = Rect< CharDistT, CharDistT > |
| Public Types inherited from zxeco::LinearGraphic | |
| enum class | GraphOp : unsigned char { GraphOp::COPY , GraphOp::INV , GraphOp::OR , GraphOp::INVOR , GraphOp::AND , GraphOp::INVAND , GraphOp::XOR , GraphOp::INVXOR } |
| Possible operations on Graphics. More... | |
Public Member Functions | |
| void | swapPaperInk (void) |
| < Reuse all constructor from Gr<CharDistT>. More... | |
| std::string | to_string (void) const |
| Return a text with the info of the graphic. More... | |
| Public Member Functions inherited from zxeco::DimsGraphic< CharDistT > | |
| DimsGraphic (void) | |
| Default constructor: empty graphic. More... | |
| DimsGraphic (const AreaType &a) | |
| Construct an undefined graphic of the given dimensions, to be filled. More... | |
| DimsGraphic (const AreaType &a, uint8_t b) | |
| Construct a graphic of the given dimensions filled with one byte (B). More... | |
| DimsGraphic (uint8_t *bs, const AreaType &a) | |
| Construct a graphic that is held externally (NO OWNERSHIP to this). More... | |
| DimsGraphic (DimsGraphic &g, const RectType ®ion, bool copy=true) | |
| Construct a graphic that refers to a region within another one. More... | |
| DimsGraphic (DimsGraphic &&oth) | |
| Move constructor. More... | |
| DimsGraphic & | operator= (DimsGraphic &&oth) |
| Move assignment. More... | |
| size_t | offset (const CursorType &pos) const |
| Get the offset corresponding to the given coordinates in the graphic. More... | |
| CursorType | coords (size_t offset) const |
| Get the coordinates of the given offset, if it is valid, or throws. More... | |
| uint8_t | getByte (const CursorType &pos) const |
| < Unhide the linear getByte() method hidden by the new getByte(). More... | |
| uint8_t | getByte (size_t offset) const |
| Get the byte at the given offset, throwing if it is out of range. | |
| void | setByte (const CursorType &pos, uint8_t b) |
| < Unhide the linear setByte() method hidden by the new setByte(). More... | |
| void | setByte (size_t offset, uint8_t b) |
| Change the byte at the given offset inside the data. More... | |
| void | merge (const DimsGraphic &oth, const CursorType &pos, GraphOp mode=GraphOp::COPY) |
| Merge OTH at the given coordinates of this object with the given mode. More... | |
| HEIGHTRESOL::type | scrollUp (typename HEIGHTRESOL::type howmany, typename HEIGHTRESOL::type upperrow, uint8_t fillb) |
| Scroll HOWMANY rows of the graphic up, beginning at y-coord UPPERROW. More... | |
| std::string | to_string (void) const |
| Return a text with the info of the graphic. More... | |
| Public Member Functions inherited from zxeco::LinearGraphic | |
| LinearGraphic (void) | |
| Default constructor: empty graphic. | |
| LinearGraphic (size_t s) | |
| Construct an empty graphic of the given size, yet to be filled. More... | |
| LinearGraphic (size_t s, uint8_t b) | |
| Construct a graphic of the given size filled with 1 byte (B). | |
| LinearGraphic (uint8_t *bs, size_t s) | |
| Construct a graphic that is held externally (NO OWNERSHIP to this). More... | |
| LinearGraphic (LinearGraphic &oth, size_t firstoff, size_t chunksize, size_t gap, size_t numchunks) | |
| Construct a graphic referring to part of another one (no ownership). More... | |
| LinearGraphic (const LinearGraphic &)=delete | |
| LinearGraphic & | operator= (const LinearGraphic &)=delete |
| LinearGraphic (LinearGraphic &&og) | |
| LinearGraphic & | operator= (LinearGraphic &&og) |
| bool | external (void) const noexcept |
| Whether the object refers to part of another linear graphic. More... | |
| bool | owner (void) const noexcept |
| Whether the object owns the graphical data. More... | |
| size_t | size (void) const noexcept |
| Size in memory, in bytes. More... | |
| bool | oneByte (void) const noexcept |
| Return TRUE if the graphic content is compressed into one byte. More... | |
| uint8_t | getByte (size_t offset) const |
| Get the byte at the given offset, throwing if it is out of range. | |
| uint8_t | getByteUnsafe (size_t offset) const noexcept |
| Get the byte at the given offset without checking out of range. | |
| uint8_t * | getAllBytes (void) |
| Return a pointer to the data or throw if it is onebyte or external. | |
| void | setByte (size_t offset, uint8_t b) |
| Change the byte at the given offset inside the data. More... | |
| void | setByteUnsafe (size_t offset, uint8_t b) noexcept |
| Change the byte at the given offset without checking anything. More... | |
| void | setAllBytes (uint8_t b) noexcept |
| Set all bytes of the graphic to the given value. More... | |
| void | merge (size_t destoffset, const LinearGraphic &oth, size_t origoffset, size_t howmany, GraphOp op=GraphOp::COPY) |
| Merge HOWMANY bytes from OTH (at ORIGOFFSET) into this (at DESTOFFSET). More... | |
| void | mergeUnsafe (size_t destoffset, const LinearGraphic &oth, size_t origoffset, size_t howmany, GraphOp op=GraphOp::COPY) |
| Merge HOWMANY bytes from OTH (at ORIGOFFSET) into this (at DESTOFFSET). More... | |
| int | compare (const LinearGraphic &oth, bool withinv=false) const noexcept |
| Compare this graphic to OTH and return 1 if both are equal. More... | |
| size_t | similarity (const LinearGraphic &oth) const noexcept |
| Return a measure of the bitmap similarity (bit by bit) between both. More... | |
| std::string | to_string (void) const |
| Return a text with the info of the graphic. | |
Additional Inherited Members | |
| Static Public Member Functions inherited from zxeco::LinearGraphic | |
| template<LinearGraphic::GraphOp op> | |
| static constexpr uint8_t | doGraphOp (uint8_t b0, uint8_t b1) noexcept |
| Return the result of doing operation OP on byte B0 with byte B1. | |
| Public Attributes inherited from zxeco::DimsGraphic< CharDistT > | |
| AreaType | dims |
| Dimensions of the graphic. More... | |
| Protected Member Functions inherited from zxeco::LinearGraphic | |
| void | clear (void) |
| void | reset (void) |
| void | moveFrom (LinearGraphic &&og) |
| Protected Attributes inherited from zxeco::LinearGraphic | |
| bool | owner_ |
| size_t | s_ |
| class zxeco::DoubleGraphic |
A bitmap plus an attrmap, possibly synchronized.
Definition at line 1249 of file ZXGraphics.h.
Public Types | |
| enum class | PNGConversionMode { PNGConversionMode::ToNearestPlain , PNGConversionMode::Dither } |
| Modes of conversion of PNG images into DoubleGraphic. More... | |
| enum class | PNGConversionSubmode { PNGConversionSubmode::None , PNGConversionSubmode::FixedPattern , PNGConversionSubmode::Noise } |
| Submode of conversion of PNG images into DoubleGraphic. More... | |
| using | NumDithLevels = uint8_t |
| Type for storing number of dithering levels. More... | |
Public Attributes | |
| Bitmap | bitmap |
| Attrmap | attrmap |
Public Member Functions | |
| DoubleGraphic (const CharArea &dims) | |
| Constructor for a given size in characters. More... | |
| DoubleGraphic (uint8_t *bs, uint8_t *as, const CharArea &a) | |
| Construct a graphic that is held externally (NO OWNERSHIP to this). More... | |
| DoubleGraphic (DoubleGraphic &g, const CharRect ®ion, bool copy=true) | |
| Construct a graphic that refers to the same region within a bit/attrmap. More... | |
| DoubleGraphic (DesktopInterface &desktop, const std::string &pngfile, const PNGConversionParms &parms={PNGConversionMode::ToNearestPlain, PNGConversionSubmode::None}) | |
| Constructor from a .png file. More... | |
| DoubleGraphic (const DoubleGraphic &)=delete | |
| DoubleGraphic & | operator= (const DoubleGraphic &)=delete |
| DoubleGraphic (DoubleGraphic &&oth) | |
| DoubleGraphic & | operator= (DoubleGraphic &&oth) |
| void | merge (const DoubleGraphic &oth, const CharCursor &pos, LinearGraphic::GraphOp mode=LinearGraphic::GraphOp::COPY) |
| Merge both bitmap and attrmap of OTH at the given coordinates in MODE. More... | |
| void | savePNG (DesktopInterface &desktop, const std::string &pngfile) |
| Save the double graphic into a PNG file. More... | |
| std::string | to_string (void) const |
| Return a text with the info of the graphic. More... | |
| struct zxeco::DoubleGraphic::PNGConversionParms |
Parameters for the conversion of PNG images into DoubleGraphic.
Definition at line 1274 of file ZXGraphics.h.
Public Attributes | |
| PNGConversionMode | mode |
| Mode for conversion. More... | |
| PNGConversionSubmode | submode |
| Submode. More... | |
| struct { | |
| } | tonearestplain |
| Parms for ToNearestPlain mode. | |
| struct { | |
| NumDithLevels zxeco::DoubleGraphic::PNGConversionParms::numlevels | |
| Number of dithering levels. More... | |
| } | dither |
| Parms for Dither and its submodes. | |
| class zxeco::DoubleGraphic::DitheringSystem::Color |
Definition at line 1400 of file ZXGraphics.h.
Public Attributes | |
| friend | DitheringSystem |
Public Member Functions | |
| RGBPalette::Index | indexInPal (void) const noexcept |
| RGBColor | rgbColor (void) const |
| RGBPalette::Index | firstExtreme (void) const noexcept |
| RGBPalette::Index | secondExtreme (void) const noexcept |
| DitherLevel | ditherLevel (void) const noexcept |
| bool | notDithered (void) const noexcept |
| bool | equalExtremesOrder (const Color &oc) const noexcept |
| bool | equalExtremesNotOrder (const Color &oc) const noexcept |
| bool | equalExtremes (const Color &oc) const noexcept |
| Color | makeCompatibleWith (const Color &oc) const noexcept |
| std::string | to_string (void) const |
|
constexprnoexcept |
#include <ZXGraphics.h>
Definition at line 1678 of file ZXGraphics.h.
1.9.5
