Description

This module provides general definitions for the ZXEcosystem GUI.

Copyright: See LICENSE.txt and AUTHORS.txt file.

http://jafma.net

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.

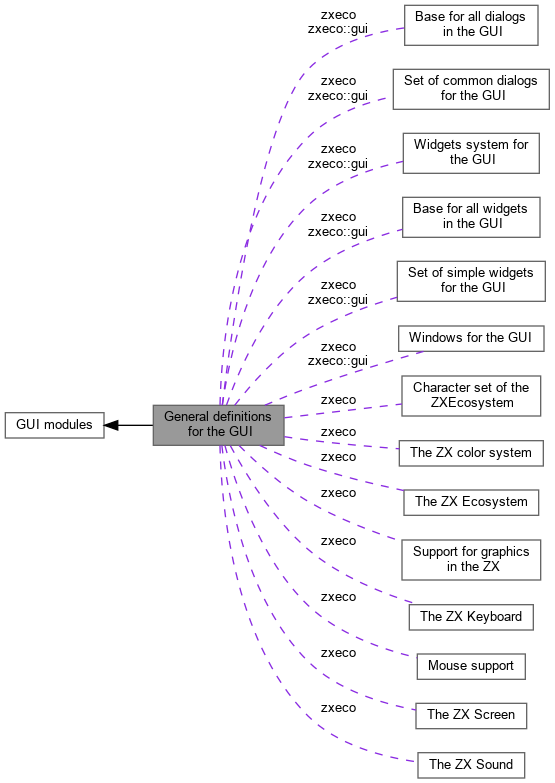

Collaboration diagram for General definitions for the GUI:

Namespaces
namespace	zxeco
	The main namespace of the library, that spans across all the zx modules.

namespace	zxeco::gui
	The namespace of the GUI companion sub-library.

Classes
struct	zxeco::gui::WinColors
	Colors used in a GUI window. More...

class	zxeco::gui::TypingZone
	A zone of a widget where the user can type. More...

class	zxeco::gui::Label
	A non-empty label for a widget. More...

class	zxeco::gui::LabelList
	A list of labels to be displayed vertically, with possible marks on them. More...

class	zxeco::gui::LabelList::Iterator
	Bidirectional iterator to scan indexes in the list under a given view. More...

class	zxeco::gui::LabelList::IndsRange
	A range of indexes covering some part of the list. More...

class	zxeco::gui::LabelTree
	A tree of labels based on LabelList. More...

class	zxeco::gui::LabelTree::DepthFirstInserter
	Inserter of elements into the tree structure. More...

class	zxeco::gui::LabelDirBrowser
	A tree of labels that correspond to the entries in a directory tree. More...

Macros
#define	ZXGUIVER "3.0.0"
	Version of the GUI sublibrary. More...

Class Documentation

◆ zxeco::gui::WinColors

struct zxeco::gui::WinColors

Colors used in a GUI window.

Definition at line 52 of file ZXGUIGeneral.h.

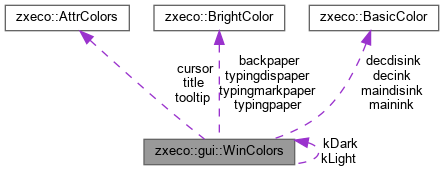

Collaboration diagram for zxeco::gui::WinColors:

[legend]

Static Public Attributes
static const WinColors	kLight
	Colors for light background, with bright. More...

static const WinColors	kDark
	Colors for dark background, with bright. More...

Public Attributes
AttrColors	title
	For paper, ink, bright of title (flash ignored) More...

BrightColor	backpaper
	For the background paper and bright. More...

BasicColor	mainink
	For the ink of main enabled elements. More...

BasicColor	maindisink
	For the ink of main disabled elements. More...

BasicColor	decink
	For the ink of enabled decorations. More...

BasicColor	decdisink
	For the ink of disabled decorations. More...

BrightColor	typingpaper
	For the paper of typing areas. More...

BrightColor	typingdispaper
	For the paper of disabled typing areas. More...

BrightColor	typingmarkpaper
	For marking some part of the typing areas. More...

AttrColors	cursor
	For a cursor marking something. More...

AttrColors	tooltip
	Colors for the tooltip. More...

Public Member Functions
uint8_t	attrForBackground (void) const
	< Return an attribute suitable for filling a background attrmap. More...

void	setTitleColorsFor (Screen &scr, bool forborder=false) const
	< Put the title colors in SCR. More...

void	setBackgroundColorsFor (Screen &scr) const
	< Put the background colors in SCR. More...

void	setMainColorsFor (Screen &scr, bool enabled) const
	< Put the main colors in SCR. More...

void	setDecorColorsFor (Screen &scr, bool enabled) const
	< Put the decorations colors in SCR. More...

void	setTypingColorsFor (Screen &scr, bool enabled) const
	< Put the colors for a typing area in SCR. More...

void	setCursorColorsFor (Screen &scr) const
	< Put the cursor colors in SCR. More...

std::string	to_string (void) const
	< Return textual information about the colors. More...

Member Function Documentation

◆ attrForBackground()

uint8_t zxeco::gui::WinColors::attrForBackground ( void ) const

inline

< Return an attribute suitable for filling a background attrmap.

Definition at line 72 of file ZXGUIGeneral.h.

◆ setTitleColorsFor()

void zxeco::gui::WinColors::setTitleColorsFor	(	Screen &	scr,
		bool	forborder = `false`
	)		const

inline

< Put the title colors in SCR.

Definition at line 77 of file ZXGUIGeneral.h.

◆ setBackgroundColorsFor()

void zxeco::gui::WinColors::setBackgroundColorsFor ( Screen & scr ) const

inline

< Put the background colors in SCR.

Definition at line 84 of file ZXGUIGeneral.h.

◆ setMainColorsFor()

void zxeco::gui::WinColors::setMainColorsFor	(	Screen &	scr,
		bool	enabled
	)		const

inline

< Put the main colors in SCR.

Definition at line 90 of file ZXGUIGeneral.h.

◆ setDecorColorsFor()

void zxeco::gui::WinColors::setDecorColorsFor	(	Screen &	scr,
		bool	enabled
	)		const

inline

< Put the decorations colors in SCR.

Definition at line 97 of file ZXGUIGeneral.h.

◆ setTypingColorsFor()

void zxeco::gui::WinColors::setTypingColorsFor	(	Screen &	scr,
		bool	enabled
	)		const

inline

< Put the colors for a typing area in SCR.

Definition at line 104 of file ZXGUIGeneral.h.

◆ setCursorColorsFor()

void zxeco::gui::WinColors::setCursorColorsFor ( Screen & scr ) const

inline

< Put the cursor colors in SCR.

Definition at line 111 of file ZXGUIGeneral.h.

◆ to_string()

std::string zxeco::gui::WinColors::to_string ( void ) const

inline

< Return textual information about the colors.

Definition at line 116 of file ZXGUIGeneral.h.

Member Data Documentation

◆ kLight

const WinColors zxeco::gui::WinColors::kLight

static

Colors for light background, with bright.

Definition at line 55 of file ZXGUIGeneral.h.

◆ kDark

const WinColors zxeco::gui::WinColors::kDark

static

Colors for dark background, with bright.

Definition at line 56 of file ZXGUIGeneral.h.

◆ title

AttrColors zxeco::gui::WinColors::title

For paper, ink, bright of title (flash ignored)

Definition at line 59 of file ZXGUIGeneral.h.

◆ backpaper

BrightColor zxeco::gui::WinColors::backpaper

For the background paper and bright.

Definition at line 60 of file ZXGUIGeneral.h.

◆ mainink

BasicColor zxeco::gui::WinColors::mainink

For the ink of main enabled elements.

Definition at line 61 of file ZXGUIGeneral.h.

◆ maindisink

BasicColor zxeco::gui::WinColors::maindisink

For the ink of main disabled elements.

Definition at line 62 of file ZXGUIGeneral.h.

◆ decink

BasicColor zxeco::gui::WinColors::decink

For the ink of enabled decorations.

Definition at line 63 of file ZXGUIGeneral.h.

◆ decdisink

BasicColor zxeco::gui::WinColors::decdisink

For the ink of disabled decorations.

Definition at line 64 of file ZXGUIGeneral.h.

◆ typingpaper

BrightColor zxeco::gui::WinColors::typingpaper

For the paper of typing areas.

Definition at line 65 of file ZXGUIGeneral.h.

◆ typingdispaper

BrightColor zxeco::gui::WinColors::typingdispaper

For the paper of disabled typing areas.

Definition at line 66 of file ZXGUIGeneral.h.

◆ typingmarkpaper

BrightColor zxeco::gui::WinColors::typingmarkpaper

For marking some part of the typing areas.

Definition at line 67 of file ZXGUIGeneral.h.

◆ cursor

AttrColors zxeco::gui::WinColors::cursor

For a cursor marking something.

Definition at line 68 of file ZXGUIGeneral.h.

◆ tooltip

AttrColors zxeco::gui::WinColors::tooltip

Colors for the tooltip.

Definition at line 69 of file ZXGUIGeneral.h.

◆ zxeco::gui::TypingZone

class zxeco::gui::TypingZone

A zone of a widget where the user can type.

Definition at line 144 of file ZXGUIGeneral.h.

Public Member Functions
	TypingZone (void)
	Default constructor. More...

void	set (const CharRect &zone) noexcept
	Change current typing zone. More...

const CharRect &	get (void) const noexcept
	Return the current typing zone (updated by derived classes). More...

void	move (IntDist xdiff, IntDist ydiff) noexcept
	< Shift typing zone. More...

void	clear (Screen &globscr, const WinColors &wincols, bool enabled)
	Draw an empty typing zone in the current zone within GLOBSCR.

Constructor & Destructor Documentation

◆ TypingZone()

zxeco::gui::TypingZone::TypingZone ( void )

inline

Default constructor.

Definition at line 148 of file ZXGUIGeneral.h.

Member Function Documentation

◆ set()

void zxeco::gui::TypingZone::set ( const CharRect & zone )

inlinenoexcept

Change current typing zone.

Definition at line 151 of file ZXGUIGeneral.h.

◆ get()

const CharRect & zxeco::gui::TypingZone::get ( void ) const

inlinenoexcept

Return the current typing zone (updated by derived classes).

Definition at line 154 of file ZXGUIGeneral.h.

◆ move()

void zxeco::gui::TypingZone::move	(	IntDist	xdiff,
		IntDist	ydiff
	)

inlinenoexcept

< Shift typing zone.

Definition at line 157 of file ZXGUIGeneral.h.

◆ zxeco::gui::Label

class zxeco::gui::Label

A non-empty label for a widget.

A label can contain colour controls but not location controls.

Definition at line 178 of file ZXGUIGeneral.h.

Public Types
using	Vector = std::vector< Label >
	A vector of labels. More...

Public Member Functions
	Label (void)
	Default constructor: empty label. More...

	Label (const std::string &initlabel)
	Constructor from string. More...

	Label (const char *initlabel)
	Constructor from char array. More...

void	set (const std::string &label)
	Set the label text to LABEL. More...

void	set (const char *label)
	Set the label text to LABEL. More...

const std::string &	get (void) const noexcept
	Get the current label text. More...

Member Typedef Documentation

◆ Vector

using zxeco::gui::Label::Vector = std::vector<Label>

A vector of labels.

Definition at line 183 of file ZXGUIGeneral.h.

Constructor & Destructor Documentation

◆ Label() [1/3]

zxeco::gui::Label::Label ( void )

inline

Default constructor: empty label.

Definition at line 186 of file ZXGUIGeneral.h.

◆ Label() [2/3]

zxeco::gui::Label::Label ( const std::string & initlabel )

inline

Constructor from string.

Definition at line 189 of file ZXGUIGeneral.h.

◆ Label() [3/3]

zxeco::gui::Label::Label ( const char * initlabel )

inline

Constructor from char array.

Definition at line 192 of file ZXGUIGeneral.h.

Member Function Documentation

◆ set() [1/2]

void zxeco::gui::Label::set ( const std::string & label )

Set the label text to LABEL.

If empty, throw.

◆ set() [2/2]

void zxeco::gui::Label::set ( const char * label )

Set the label text to LABEL.

If nullptr or empty, throw.

◆ get()

const std::string & zxeco::gui::Label::get ( void ) const

inlinenoexcept

Get the current label text.

Definition at line 203 of file ZXGUIGeneral.h.

◆ zxeco::gui::LabelList

class zxeco::gui::LabelList

A list of labels to be displayed vertically, with possible marks on them.

< Each label has a number of independent, associated marks equal to the character length of the constructor parameter MARKINMULTIPS. Each char in that string indicates whether that marking allows for multiple selection ('M'), or single selection ('S') or no selection ('N'). In multiple selection, any number of marks can be set or unset. In simple selection, either no mark is set or only one is set. In no selection, no mark can be set. The labels can be set as visible or not, independently from their marks. These lists can refer to other lists, with unlimited recursion length, although accesses to their elements will be slower as longer that length (linearly).

Definition at line 230 of file ZXGUIGeneral.h.

Inheritance diagram for zxeco::gui::LabelList:

[legend]

Collaboration diagram for zxeco::gui::LabelList:

[legend]

Public Types
using	Observer = std::function< void(char)>

using	Indexes = std::vector< size_t >
	A set of unique absolute indexes on the list. More...

Static Public Attributes
static const Observer	kNullObserver
	An observer that does nothing. More...

Public Attributes
const std::string	kMarkingMultips
	Multiple selection mode of markings. More...

const size_t	kNumOfMarkings
	Number of independent markings for labels. More...

Public Member Functions
	LabelList (const std::string &markingmultips, const Observer &obs=kNullObserver)
	Constructor: empty list and marks. More...

	LabelList (LabelList &oth, size_t begin, size_t length, const Observer &obs=kNullObserver) noexcept
	Constructor: sublist taken from indexes [begin,begin+length) from OTH. More...

	LabelList (const Label::Vector &labels, const std::string &markingmultips, const Observer &obs=kNullObserver)
	Constructor from a vector of labels.

	LabelList (const LabelList &oth)

	LabelList (LabelList &&oth)
	Move constructor eaves OTH in undefined state if OTH has no ownership.

LabelList &	operator= (const LabelList &oth)

LabelList &	operator= (LabelList &&oth)
	Move copy leaves OTH in undefined state if OTH has no ownership.

virtual	~LabelList (void)
	Destructor. More...

virtual LabelList *	clone (void) const
	Clone operation for being overriden in derived classes to return them. More...

void	checkMarking (unsigned marking) const
	If the given marking is not valid for the current list, throw.

void	checkIndex (size_t who) const
	If the given index is not valid in the current list, throw.

size_t	size (void) const noexcept
	Return the current number of labels in the list, either visible or not. More...

bool	empty (void) const noexcept
	Return TRUE if the list is empty (O(1)). More...

CharArea	areaForEntireList (void) const
	Return the area in chars that the visible items of the list would occpy. More...

const Observer &	observer (void) const noexcept
	Return a reference to the current observer. More...

void	changeObserver (const Observer &obs)
	Change the current observer by OBS. More...

Iterator	begin (uint8_t conditions=Iterator::IT_ALL, unsigned marking=0) const
	Return an iterator to iterate in that fashion, pointing to beginning. More...

Iterator	end (void) const
	Return an iterator pointing to the end of the list. More...

size_t	sizeByIterator (Iterator it) const noexcept
	Return the current number of labels in the list that satisfy IT conds. More...

size_t	longestLabel (Iterator it) const noexcept
	Return the maximum number of chars of any label scanned by IT, or 0. More...

virtual std::string	labelText (size_t who) const
	Return a copy of the text of the WHO-th label. More...

Label &	label (size_t who)
	Return a reference to a modifiable label of the list. More...

bool	marked (size_t who, unsigned marking=0) const
	Return the marked state of label WHO in marking MARKING. More...

bool	visible (size_t who) const
	Return TRUE if that label is currently visible.

LabelList	sublist (const Indexes &inds) const
	Return the given sublist as a copy of the elements of this one. More...

bool	mark (size_t who, unsigned marking=0)
	Mark the WHO-th label, according to the mode of marks. More...

bool	markAll (unsigned marking=0)
	Mark all labels in marking or do nothing if the multiplicity forbids. More...

bool	unmark (size_t who, unsigned marking=0)
	Unmark the WHO-th label. More...

bool	unmarkAll (unsigned marking=0)
	Unmark all labels at marking MARKING. More...

void	toggle (size_t who, unsigned marking=0)
	Toggle the mark of WHO according to the mode of selections. More...

void	toggleAll (unsigned marking=0)
	Like toggle on all marks. More...

virtual void	setVisible (size_t who)
	Set that element to visible. More...

virtual void	setInvisible (size_t who)
	Set that element to invisible. More...

virtual void	toggleVisible (size_t who)
	Toggle visibility of the label WHO. More...

virtual void	clear (void)
	Clear the content of the entire list, markings and visibilities. More...

size_t	push_back (const Label &l)
	Insert an unmarked, visible label at the end of the list. More...

void	push_back (const Label::Vector &v)

virtual size_t	insert (const Label &l, size_t beforewho)
	Insert an unmarked, visible label before the given element. More...

void	insert (const Label::Vector &v, size_t beforewho)

virtual void	erase (size_t who)
	Erase the given element and its marks. More...

bool	eraseMarked (unsigned marking=0)
	Erase all elements marked in the given marking. Return TRUE if any. More...

void	append (const LabelList &oth)
	Append a copy of OTH to this.

void	append (LabelList &&oth)
	Move the content of OTH to the end of this.

virtual void	sort (char mode='A', std::vector< size_t > *order=nullptr)
	Sort all elements in the list, unregarding marks and visibility. More...

void	fillWithFiles (const std::filesystem::path &path={}, char mode='T', bool onlyfiles=false, std::vector< std::string > *entries=nullptr)
	Clear the list and fill it with the files and folders in PATH. More...

virtual std::string	to_string (void) const
	Return a (potentially long) text with all entries of the list and mrkrs. More...

Protected Types
using	Marks = std::vector< bool >
	Marks that can be associated to labels in a given marking. More...

Protected Member Functions
void	copyFrom (const LabelList &oth)

void	moveFrom (LabelList &&oth)

Protected Attributes
Observer	obs_

bool	owner_

Label::Vector	labels_

std::vector< Marks >	markings_

Marks	visible_

LabelList *	sect_

IndsRange	sectrange_

Member Typedef Documentation

◆ Observer

using zxeco::gui::LabelList::Observer = std::function<void(char)>

Parameters

char	indicates the reason for calling the observer: 'm' -> change in marking of labels 'c' -> change in content of list 'v' -> change in visibility of labels

Definition at line 234 of file ZXGUIGeneral.h.

◆ Indexes

using zxeco::gui::LabelList::Indexes = std::vector<size_t>

A set of unique absolute indexes on the list.

Definition at line 241 of file ZXGUIGeneral.h.

◆ Marks

using zxeco::gui::LabelList::Marks = std::vector<bool>

protected

Marks that can be associated to labels in a given marking.

Definition at line 676 of file ZXGUIGeneral.h.

Constructor & Destructor Documentation

◆ LabelList() [1/2]

zxeco::gui::LabelList::LabelList	(	const std::string &	markingmultips,
		const Observer &	obs = `kNullObserver`
	)

Constructor: empty list and marks.

Observer will be called every time a method call in this class modifies the list or marks.

◆ LabelList() [2/2]

zxeco::gui::LabelList::LabelList	(	LabelList &	oth,
		size_t	begin,
		size_t	length,
		const Observer &	obs = `kNullObserver`
	)

noexcept

Constructor: sublist taken from indexes [begin,begin+length) from OTH.

If the range is out of the possibilities of OTH, it is automatically adjusted for fitting OTH. It will be adjusted automatically further on as elements are erased or inserted in the list.

Note: Any operation in a delegated list will occur at the end in the last supporting list; if the latter is a derived type, the base LabelList method will be called, not the derived ones.

◆ ~LabelList()

virtual zxeco::gui::LabelList::~LabelList ( void )

inlinevirtual

Destructor.

In case of the list being supported by another, it does not clear it.

Definition at line 412 of file ZXGUIGeneral.h.

Member Function Documentation

◆ clone()

virtual LabelList * zxeco::gui::LabelList::clone ( void ) const

inlinevirtual

Clone operation for being overriden in derived classes to return them.

Reimplemented in zxeco::gui::LabelTree, and zxeco::gui::LabelDirBrowser.

Definition at line 415 of file ZXGUIGeneral.h.

◆ size()

size_t zxeco::gui::LabelList::size ( void ) const

noexcept

Return the current number of labels in the list, either visible or not.

This is O(1). If the list refers to another list, this size will count only the currently covered elements, according to the initially established range of indexes, in the supporting list.

◆ empty()

bool zxeco::gui::LabelList::empty ( void ) const

inlinenoexcept

Return TRUE if the list is empty (O(1)).

Definition at line 431 of file ZXGUIGeneral.h.

◆ areaForEntireList()

CharArea zxeco::gui::LabelList::areaForEntireList ( void ) const

Return the area in chars that the visible items of the list would occpy.

This method calls longestLabel() to get the width of the area. The returned area is the one needed if the list would be to be printed entirely in both dimensions.

◆ observer()

const Observer & zxeco::gui::LabelList::observer ( void ) const

inlinenoexcept

Return a reference to the current observer.

Definition at line 440 of file ZXGUIGeneral.h.

◆ changeObserver()

void zxeco::gui::LabelList::changeObserver ( const Observer & obs )

inline

Change the current observer by OBS.

If this is a list referring to another supporting one, the observer of the other will be called (possibly several times) each time a modifica- tion is done in this list, and then the observer of this list will be called once.

Definition at line 443 of file ZXGUIGeneral.h.

◆ begin()

Iterator zxeco::gui::LabelList::begin	(	uint8_t	conditions = `Iterator::IT_ALL`,
		unsigned	marking = `0`
	)		const

Return an iterator to iterate in that fashion, pointing to beginning.

If no elements in the list that satisfy the conditions, return end().

◆ end()

Iterator zxeco::gui::LabelList::end ( void ) const

inline

Return an iterator pointing to the end of the list.

Definition at line 455 of file ZXGUIGeneral.h.

◆ sizeByIterator()

size_t zxeco::gui::LabelList::sizeByIterator ( Iterator it ) const

noexcept

Return the current number of labels in the list that satisfy IT conds.

Begin to count at IT and then count until end(). It does not modify IT since the argument is copied. It is O(n).

◆ longestLabel()

size_t zxeco::gui::LabelList::longestLabel ( Iterator it ) const

noexcept

Return the maximum number of chars of any label scanned by IT, or 0.

Consider labels begining by the one iterated by IT and after end(). This method deals with the labelText() of the appropriate class, either this one or a derived one in case of overriding.

◆ labelText()

virtual std::string zxeco::gui::LabelList::labelText ( size_t who ) const

virtual

Return a copy of the text of the WHO-th label.

Derived classes may modify the text, and that modified result will be the one used by longestLabel() and areaForList().

Reimplemented in zxeco::gui::LabelTree.

◆ label()

Label & zxeco::gui::LabelList::label ( size_t who )

Return a reference to a modifiable label of the list.

Use the labelText() method if you only need to read the label text, since the list may return in labelText() a modified version of the string in some cases.

◆ marked()

bool zxeco::gui::LabelList::marked	(	size_t	who,
		unsigned	marking = `0`
	)		const

Return the marked state of label WHO in marking MARKING.

Recall that in 'N' mode, all marks will be false.

◆ sublist()

LabelList zxeco::gui::LabelList::sublist ( const Indexes & inds ) const

Return the given sublist as a copy of the elements of this one.

The observer in the sublist is the null one. All indexes are copied in the sublist, even if they are repeated (then they will appear more than once in the result).

◆ mark()

bool zxeco::gui::LabelList::mark	(	size_t	who,
		unsigned	marking = `0`
	)

Mark the WHO-th label, according to the mode of marks.

Return TRUE if some mark has effectively changed. Consider both visible and invisible labels.

◆ markAll()

bool zxeco::gui::LabelList::markAll ( unsigned marking = 0 )

Mark all labels in marking or do nothing if the multiplicity forbids.

Consider both visible and invisible labels.

◆ unmark()

bool zxeco::gui::LabelList::unmark	(	size_t	who,
		unsigned	marking = `0`
	)

Unmark the WHO-th label.

Return TRUE if some mark has effectively changed. Consider both visible and invisible labels.

◆ unmarkAll()

bool zxeco::gui::LabelList::unmarkAll ( unsigned marking = 0 )

Unmark all labels at marking MARKING.

Return TRUE if some mark has effectively changed. Consider both visible and invisible labels.

◆ toggle()

void zxeco::gui::LabelList::toggle	(	size_t	who,
		unsigned	marking = `0`
	)

Toggle the mark of WHO according to the mode of selections.

Consider both visible and invisible labels.

◆ toggleAll()

void zxeco::gui::LabelList::toggleAll ( unsigned marking = 0 )

Like toggle on all marks.

Consider both visible and invisible labels.

◆ setVisible()

virtual void zxeco::gui::LabelList::setVisible ( size_t who )

virtual

Set that element to visible.

Reimplemented in zxeco::gui::LabelTree.

◆ setInvisible()

virtual void zxeco::gui::LabelList::setInvisible ( size_t who )

virtual

Set that element to invisible.

Reimplemented in zxeco::gui::LabelTree.

◆ toggleVisible()

virtual void zxeco::gui::LabelList::toggleVisible ( size_t who )

virtual

Toggle visibility of the label WHO.

Reimplemented in zxeco::gui::LabelTree.

◆ clear()

virtual void zxeco::gui::LabelList::clear ( void )

virtual

Clear the content of the entire list, markings and visibilities.

Reimplemented in zxeco::gui::LabelDirBrowser, and zxeco::gui::LabelTree.

◆ push_back() [1/2]

size_t zxeco::gui::LabelList::push_back ( const Label & l )

inline

Insert an unmarked, visible label at the end of the list.

Return the position where the label has been inserted. If this is a list that refers to another, supporting one, the element will be inserted at the end of its section in the supporting one. Note that the insert() method called by this one is the one of the derived class, if the object is not a plain instance of LabelList.

Definition at line 536 of file ZXGUIGeneral.h.

◆ push_back() [2/2]

void zxeco::gui::LabelList::push_back ( const Label::Vector & v )

inline

Parameters

v	Insert all labels in V at the end of the list, as unmarked, visible.

Definition at line 543 of file ZXGUIGeneral.h.

◆ insert() [1/2]

virtual size_t zxeco::gui::LabelList::insert	(	const Label &	l,
		size_t	beforewho
	)

virtual

Insert an unmarked, visible label before the given element.

Consider both visible and invisible labels. Return the position where the label has been inserted (which will always be BEFOREWHO).

Reimplemented in zxeco::gui::LabelTree.

◆ insert() [2/2]

void zxeco::gui::LabelList::insert	(	const Label::Vector &	v,
		size_t	beforewho
	)

inline

Parameters

beforewho Insert all labels in V before the given position.

Definition at line 552 of file ZXGUIGeneral.h.

◆ erase()

virtual void zxeco::gui::LabelList::erase ( size_t who )

virtual

Erase the given element and its marks.

Consider both visible and invisible labels. Note that this modifes the size of the labels list and therefore their indexes.

Reimplemented in zxeco::gui::LabelTree.

◆ eraseMarked()

bool zxeco::gui::LabelList::eraseMarked ( unsigned marking = 0 )

Erase all elements marked in the given marking. Return TRUE if any.

Consider both visible and invisible labels. Internally, use erase() to erase each individual label.

◆ sort()

virtual void zxeco::gui::LabelList::sort	(	char	mode = `'A'`,
		std::vector< size_t > *	order = `nullptr`
	)

virtual

Sort all elements in the list, unregarding marks and visibility.

Parameters

mode	indicates the mode: 'A'-> alphabetical increasing, 'D'-> alphabetical decreasing.
order	if not null will be filled with a vector of indexes in the label list that indicate the order established on the previously unordered list.

Reimplemented in zxeco::gui::LabelTree.

◆ fillWithFiles()

void zxeco::gui::LabelList::fillWithFiles	(	const std::filesystem::path &	path = `{}`,
		char	mode = `'T'`,
		bool	onlyfiles = `false`,
		std::vector< std::string > *	entries = `nullptr`
	)

Clear the list and fill it with the files and folders in PATH.

If the path is left empty, the current path will be used. Only regular files and directories are included in the list. The list is ordered alphabetically increasing, case insensitive, directories first.

Parameters

mode	is the mode in which the different types of entries are filled in the list: 'T' -> directories are preffixed with '/' while files are not.
onlyfiles	indicates (TRUE) if filling only with files, or (FALSE) with files and directories.
entries	if not nullptr will be set to a vector with the directory entries corresponding to the filled list; each entry is a string that begins with a letter indicating the type of entry ('D' -> direc- tory, 'P' -> parent directory of PATH, 'F' -> regular file); being the rest the absolute path of the entry in string native format.

◆ to_string()

virtual std::string zxeco::gui::LabelList::to_string ( void ) const

virtual

Return a (potentially long) text with all entries of the list and mrkrs.

Reimplemented in zxeco::gui::LabelTree.

Member Data Documentation

◆ kNullObserver

const Observer zxeco::gui::LabelList::kNullObserver

static

An observer that does nothing.

Note that this observer is static; if you have a LabelList that is created statically, it may found this observer uncreated depending on the order of creation of static objects in different compilation units.

Definition at line 373 of file ZXGUIGeneral.h.

◆ kMarkingMultips

const std::string zxeco::gui::LabelList::kMarkingMultips

Multiple selection mode of markings.

Definition at line 379 of file ZXGUIGeneral.h.

◆ kNumOfMarkings

const size_t zxeco::gui::LabelList::kNumOfMarkings

Number of independent markings for labels.

Definition at line 380 of file ZXGUIGeneral.h.

◆ obs_

Observer zxeco::gui::LabelList::obs_

protected

Definition at line 679 of file ZXGUIGeneral.h.

◆ owner_

bool zxeco::gui::LabelList::owner_

protected

Definition at line 680 of file ZXGUIGeneral.h.

◆ labels_

Label::Vector zxeco::gui::LabelList::labels_

protected

Definition at line 681 of file ZXGUIGeneral.h.

◆ markings_

std::vector<Marks> zxeco::gui::LabelList::markings_

protected

Definition at line 682 of file ZXGUIGeneral.h.

◆ visible_

Marks zxeco::gui::LabelList::visible_

protected

Definition at line 683 of file ZXGUIGeneral.h.

◆ sect_

LabelList* zxeco::gui::LabelList::sect_

protected

Definition at line 684 of file ZXGUIGeneral.h.

◆ sectrange_

IndsRange zxeco::gui::LabelList::sectrange_

protected

Definition at line 685 of file ZXGUIGeneral.h.

◆ zxeco::gui::LabelList::Iterator

class zxeco::gui::LabelList::Iterator

Bidirectional iterator to scan indexes in the list under a given view.

Definition at line 245 of file ZXGUIGeneral.h.

Public Types
enum	: uint8_t { IT_VISIBLE = 1 , IT_INVISIBLE = 2 , IT_MARKED = 4 , IT_UNMARKED = 8 }
	Conditions for iterating that define the view (can be OR-ed). More...

enum	IniPos : uint8_t { BEGIN , END }
	Iterator to create. More...

Static Public Member Functions
static bool	labelSatisfiesCondition (uint8_t conditions, const LabelList &l, size_t who, unsigned marking=0)
	Test whether that label satisfies the given conditions. More...

Static Public Attributes
static const uint8_t	IT_ANY_VISIBILITY = IT_VISIBLE \| IT_INVISIBLE
	View of all labels unregarding visibility. More...

static const uint8_t	IT_ANY_MARKABILITY = IT_MARKED \| IT_UNMARKED
	View of all labels unregarding markability. More...

static const uint8_t	IT_ALL = IT_ANY_VISIBILITY \| IT_ANY_MARKABILITY
	View of all labels unregarding both visibility and markability. More...

static const uint8_t	IT_ALL_VISIBLE = IT_VISIBLE \| IT_ANY_MARKABILITY
	View of all visible labels, unregarding marks. More...

Public Member Functions
	Iterator (void)
	Default constructor: end iterator.

	Iterator (const LabelList &l, uint8_t conditions=IT_ALL, unsigned marking=0, IniPos inip=BEGIN)
	Construct an iterator for scanning label indexes in the given list. More...

	Iterator (const Iterator &oth, uint8_t newconds, unsigned newmarking=0) noexcept
	Construct iterator to the same label as OTH but with another view. More...

	Iterator (const Iterator &oth)

	Iterator (Iterator &&oth)

Iterator &	operator= (const Iterator &oth)

Iterator &	operator= (Iterator &&oth)

uint8_t	conditions (void) const noexcept
	Return the conditions for which the iterator was created. More...

unsigned	marking (void) const noexcept
	Return the marking for which the iterator was created. More...

size_t	operator* (void) const
	Return the actual position of the label in the label list. More...

size_t	advance (size_t n) noexcept
	Advance the iterator N steps; return the no. of steps not advanced. More...

size_t	retreat (size_t n) noexcept
	Retreat the iterator N steps; return the no. of steps not retreatd. More...

Iterator &	operator++ (void) noexcept
	Prefix increment for the iterator. More...

Iterator &	operator-- (void) noexcept
	Prefix decrement for the iterator. More...

bool	operator== (const Iterator &oth) const
	Return TRUE if both iterators are end or point to the same element. More...

bool	operator!= (const Iterator &oth) const
	Return TRUE if any of them is not end or point to diffrnt elements.

int	operator- (const Iterator &rhs) const
	Return the distance from OTH to THIS (negative if OTH comes before) More...

std::string	to_string (void) const
	Return a text describing the iterator.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum : uint8_t

Conditions for iterating that define the view (can be OR-ed).

Enumerator
IT_VISIBLE	Iterate on visible labels.
IT_INVISIBLE	Iterate on invisible labels.
IT_MARKED	Iterate on marked labels.
IT_UNMARKED	Iterate on unmarked labels.

Definition at line 250 of file ZXGUIGeneral.h.

◆ IniPos

enum zxeco::gui::LabelList::Iterator::IniPos : uint8_t

Iterator to create.

Enumerator
BEGIN	One that points to the first index in view.
END	One that points past the last index in view.

Definition at line 270 of file ZXGUIGeneral.h.

Constructor & Destructor Documentation

◆ Iterator() [1/4]

zxeco::gui::LabelList::Iterator::Iterator	(	const LabelList &	l,
		uint8_t	conditions = `IT_ALL`,
		unsigned	marking = `0`,
		IniPos	inip = `BEGIN`
	)

Construct an iterator for scanning label indexes in the given list.

This is O(n), being N the length of the list.

Parameters

l	is the list to iterate on. It must outlive the iterator. Any change in the list should be consider to invalidate the iterator.
conditions	is the view: an OR-ed set of conditions to iterate.
marking	is considered only if IT_MARKED (xor) IT_UNMARKED; in that case, indicates the marking to use.
inip	indicates whether the iterator is constructed to point to the first element in the list under that view or past the end.

◆ Iterator() [2/4]

zxeco::gui::LabelList::Iterator::Iterator	(	const Iterator &	oth,
		uint8_t	newconds,
		unsigned	newmarking = `0`
	)

noexcept

Construct iterator to the same label as OTH but with another view.

Construct the end() iterator if the new conditions are incompatible with that element of OTH. This method is O(n), being N the length of the list.

◆ Iterator() [3/4]

zxeco::gui::LabelList::Iterator::Iterator ( const Iterator & oth )

inline

Definition at line 304 of file ZXGUIGeneral.h.

◆ Iterator() [4/4]

zxeco::gui::LabelList::Iterator::Iterator ( Iterator && oth )

inline

Definition at line 305 of file ZXGUIGeneral.h.

Member Function Documentation

◆ labelSatisfiesCondition()

static bool zxeco::gui::LabelList::Iterator::labelSatisfiesCondition	(	uint8_t	conditions,
		const LabelList &	l,
		size_t	who,
		unsigned	marking = `0`
	)

static

Test whether that label satisfies the given conditions.

Marking is only used if IT_MARKED != IT_UNMARKED in conditions.

◆ operator=() [1/2]

Iterator & zxeco::gui::LabelList::Iterator::operator= ( const Iterator & oth )

inline

Definition at line 306 of file ZXGUIGeneral.h.

◆ operator=() [2/2]

Iterator & zxeco::gui::LabelList::Iterator::operator= ( Iterator && oth )

inline

Definition at line 308 of file ZXGUIGeneral.h.

◆ conditions()

uint8_t zxeco::gui::LabelList::Iterator::conditions ( void ) const

inlinenoexcept

Return the conditions for which the iterator was created.

Definition at line 312 of file ZXGUIGeneral.h.

◆ marking()

unsigned zxeco::gui::LabelList::Iterator::marking ( void ) const

inlinenoexcept

Return the marking for which the iterator was created.

Definition at line 315 of file ZXGUIGeneral.h.

◆ operator*()

size_t zxeco::gui::LabelList::Iterator::operator* ( void ) const

Return the actual position of the label in the label list.

Throw if end.

◆ advance()

size_t zxeco::gui::LabelList::Iterator::advance ( size_t n )

noexcept

Advance the iterator N steps; return the no. of steps not advanced.

If end() is reached, does not add anything else. This is O(n).

◆ retreat()

size_t zxeco::gui::LabelList::Iterator::retreat ( size_t n )

noexcept

Retreat the iterator N steps; return the no. of steps not retreatd.

If begin() is reached, does not add anything else. This is O(n).

◆ operator++()

Iterator & zxeco::gui::LabelList::Iterator::operator++ ( void )

noexcept

Prefix increment for the iterator.

After end() is reached, no further increments have any effect. This is O(n), being N the length of the list.

◆ operator--()

Iterator & zxeco::gui::LabelList::Iterator::operator-- ( void )

noexcept

Prefix decrement for the iterator.

After begin() is reached, no further decrements have any effect. This is O(n), being N the length of the list.

◆ operator==()

bool zxeco::gui::LabelList::Iterator::operator== ( const Iterator & oth ) const

Return TRUE if both iterators are end or point to the same element.

All end iterators are considered equal, unregarding the list and view they have been created for. For non-end iterators, equality requires same view and list (otherwise, throw).

◆ operator-()

int zxeco::gui::LabelList::Iterator::operator- ( const Iterator & rhs ) const

Return the distance from OTH to THIS (negative if OTH comes before)

Throw if both do not have the same view. This is O(1).

Member Data Documentation

◆ IT_ANY_VISIBILITY

const uint8_t zxeco::gui::LabelList::Iterator::IT_ANY_VISIBILITY = IT_VISIBLE | IT_INVISIBLE

static

View of all labels unregarding visibility.

Definition at line 258 of file ZXGUIGeneral.h.

◆ IT_ANY_MARKABILITY

const uint8_t zxeco::gui::LabelList::Iterator::IT_ANY_MARKABILITY = IT_MARKED | IT_UNMARKED

static

View of all labels unregarding markability.

Definition at line 261 of file ZXGUIGeneral.h.

◆ IT_ALL

const uint8_t zxeco::gui::LabelList::Iterator::IT_ALL = IT_ANY_VISIBILITY | IT_ANY_MARKABILITY

static

View of all labels unregarding both visibility and markability.

Definition at line 264 of file ZXGUIGeneral.h.

◆ IT_ALL_VISIBLE

const uint8_t zxeco::gui::LabelList::Iterator::IT_ALL_VISIBLE = IT_VISIBLE | IT_ANY_MARKABILITY

static

View of all visible labels, unregarding marks.

Definition at line 267 of file ZXGUIGeneral.h.

◆ zxeco::gui::LabelList::IndsRange

class zxeco::gui::LabelList::IndsRange

A range of indexes covering some part of the list.

Definition at line 606 of file ZXGUIGeneral.h.

Public Types
using	IntervalType = Interval< size_t >

Public Member Functions
	IndsRange (size_t b, size_t e)

	IndsRange (const IntervalType &i)

size_t	begin (void) const noexcept

size_t	end (void) const noexcept

bool	empty (void) const noexcept

size_t	length (void) const noexcept

size_t	first (void) const

size_t	last (void) const

size_t	nth (size_t offset) const

void	clear (void)

void	expand (size_t l)

void	contract (size_t l)

Indexes	toIndexes (void) const

IntervalType	toInterval (void) const

std::string	to_string (void) const

Member Typedef Documentation

◆ IntervalType

using zxeco::gui::LabelList::IndsRange::IntervalType = Interval<size_t>

Definition at line 610 of file ZXGUIGeneral.h.

Constructor & Destructor Documentation

◆ IndsRange() [1/3]

zxeco::gui::LabelList::IndsRange::IndsRange ( void )

inline

Definition at line 612 of file ZXGUIGeneral.h.

◆ IndsRange() [2/3]

zxeco::gui::LabelList::IndsRange::IndsRange	(	size_t	b,
		size_t	e
	)

inline

Definition at line 614 of file ZXGUIGeneral.h.

◆ IndsRange() [3/3]

zxeco::gui::LabelList::IndsRange::IndsRange ( const IntervalType & i )

inline

Definition at line 617 of file ZXGUIGeneral.h.

Member Function Documentation

◆ begin()

size_t zxeco::gui::LabelList::IndsRange::begin ( void ) const

inlinenoexcept

Definition at line 622 of file ZXGUIGeneral.h.

◆ end()

size_t zxeco::gui::LabelList::IndsRange::end ( void ) const

inlinenoexcept

Definition at line 623 of file ZXGUIGeneral.h.

◆ empty()

bool zxeco::gui::LabelList::IndsRange::empty ( void ) const

inlinenoexcept

Definition at line 625 of file ZXGUIGeneral.h.

◆ length()

size_t zxeco::gui::LabelList::IndsRange::length ( void ) const

inlinenoexcept

Definition at line 626 of file ZXGUIGeneral.h.

◆ first()

size_t zxeco::gui::LabelList::IndsRange::first ( void ) const

inline

Definition at line 629 of file ZXGUIGeneral.h.

◆ last()

size_t zxeco::gui::LabelList::IndsRange::last ( void ) const

inline

Definition at line 632 of file ZXGUIGeneral.h.

◆ nth()

size_t zxeco::gui::LabelList::IndsRange::nth ( size_t offset ) const

inline

Definition at line 635 of file ZXGUIGeneral.h.

◆ clear()

void zxeco::gui::LabelList::IndsRange::clear ( void )

inline

Definition at line 641 of file ZXGUIGeneral.h.

◆ expand()

void zxeco::gui::LabelList::IndsRange::expand ( size_t l )

inline

Definition at line 643 of file ZXGUIGeneral.h.

◆ contract()

void zxeco::gui::LabelList::IndsRange::contract ( size_t l )

inline

Definition at line 648 of file ZXGUIGeneral.h.

◆ toIndexes()

Indexes zxeco::gui::LabelList::IndsRange::toIndexes ( void ) const

inline

Definition at line 654 of file ZXGUIGeneral.h.

◆ toInterval()

IntervalType zxeco::gui::LabelList::IndsRange::toInterval ( void ) const

inline

Definition at line 660 of file ZXGUIGeneral.h.

◆ to_string()

std::string zxeco::gui::LabelList::IndsRange::to_string ( void ) const

inline

Definition at line 664 of file ZXGUIGeneral.h.

◆ zxeco::gui::LabelTree

class zxeco::gui::LabelTree

A tree of labels based on LabelList.

< This class adds a depth level to each label, new methods to add/del labels with correct depths and a version of the text of a label that can include additional preffixes.

If you need a directory tree, do not use this class, but LabelDirBrowser instead since this class assumes a tree completely read in memory before browsing, which leads to problems in the case of large directories.

Definition at line 719 of file ZXGUIGeneral.h.

Inheritance diagram for zxeco::gui::LabelTree:

[legend]

Collaboration diagram for zxeco::gui::LabelTree:

[legend]

Public Member Functions
	LabelTree (const std::string &markingmultips, const Observer &obs=kNullObserver)
	Constructor: empty tree. More...

	LabelTree (const LabelTree &oth)

	LabelTree (LabelTree &&oth)

LabelTree &	operator= (const LabelTree &oth)

LabelTree &	operator= (LabelTree &&oth)

LabelList *	clone (void) const override
	Clone operation for being overriden in derived classes to return them. More...

const std::string &	preffixChars (void) const noexcept
	Return the current preffixes used by labelText();. More...

void	changePreffixChars (const std::string &preffixchars)
	Set the chars used as preffixes by labelText(). More...

virtual std::string	preffixForLabel (size_t who, size_t *posdeploy=nullptr) const
	Return the preffix corresponding to that label. More...

std::string	labelText (size_t who) const override
	< Return the label of the text including a preffix indicating the tree. More...

size_t	depth (size_t pos) const
	Return the depth of the given element in the tree (from 0 for root).

size_t	depth (void) const
	Return the depth of the tree, i.e., the maximum depth in it. More...

bool	hasChildren (size_t parent) const
	< Return whether the given element has any children. More...

Indexes	firstBorn (size_t parent) const
	Return the set of indexes (ordered) for the firstborns of PARENT. More...

LabelTree	subtree (size_t parent, bool withparent=false, Indexes *indexmap=nullptr) const
	Return a tree copied from the subtree of PARENT, with or without it. More...

size_t	insert (const Label &l, size_t beforewho) override
	Insert the new label previously to BEFOREWHO, with its same depth. More...

virtual size_t	insert_child (const Label &l, size_t parent)
	Insert the new label as the last child of PARENT, that must exist. More...

void	erase (size_t who) override
	Erase WHO and all its children, at all depths. More...

virtual void	erase_children (size_t who)
	Erase all children of WHO, at all depths, if any.

void	setVisible (size_t who) override
	< Set visibility for WHO and all its children. More...

void	setInvisible (size_t who) override
	< Unset visibility for WHO and all its children. More...

void	toggleVisible (size_t who) override
	< Toggle visibility for WHO and all its children. More...

virtual void	changeVisibilityDepth (size_t fromdepth, bool visib)
	Set visibility to VISIB for all elements with depth >= FROMDEPTH.

virtual void	toggleFolding (size_t who)
	Toggle visibility of children of WHO for folding/unfolding it. More...

void	sort (char mode='A', std::vector< size_t > *order=nullptr) override
	Do sort only if there is only one level in the tree; otherwise, throw. More...

void	clear (void) override
	Clear the content of the entire list, markings and visibilities. More...

std::string	to_string (void) const override
	Return a (potentially long) text with all entries of the list and mrkrs. More...

Public Member Functions inherited from zxeco::gui::LabelList
	LabelList (const std::string &markingmultips, const Observer &obs=kNullObserver)
	Constructor: empty list and marks. More...

	LabelList (LabelList &oth, size_t begin, size_t length, const Observer &obs=kNullObserver) noexcept
	Constructor: sublist taken from indexes [begin,begin+length) from OTH. More...

	LabelList (const Label::Vector &labels, const std::string &markingmultips, const Observer &obs=kNullObserver)
	Constructor from a vector of labels.

	LabelList (const LabelList &oth)

	LabelList (LabelList &&oth)
	Move constructor eaves OTH in undefined state if OTH has no ownership.

LabelList &	operator= (const LabelList &oth)

LabelList &	operator= (LabelList &&oth)
	Move copy leaves OTH in undefined state if OTH has no ownership.

virtual	~LabelList (void)
	Destructor. More...

virtual LabelList *	clone (void) const
	Clone operation for being overriden in derived classes to return them. More...

void	checkMarking (unsigned marking) const
	If the given marking is not valid for the current list, throw.

void	checkIndex (size_t who) const
	If the given index is not valid in the current list, throw.

size_t	size (void) const noexcept
	Return the current number of labels in the list, either visible or not. More...

bool	empty (void) const noexcept
	Return TRUE if the list is empty (O(1)). More...

CharArea	areaForEntireList (void) const
	Return the area in chars that the visible items of the list would occpy. More...

const Observer &	observer (void) const noexcept
	Return a reference to the current observer. More...

void	changeObserver (const Observer &obs)
	Change the current observer by OBS. More...

Iterator	begin (uint8_t conditions=Iterator::IT_ALL, unsigned marking=0) const
	Return an iterator to iterate in that fashion, pointing to beginning. More...

Iterator	end (void) const
	Return an iterator pointing to the end of the list. More...

size_t	sizeByIterator (Iterator it) const noexcept
	Return the current number of labels in the list that satisfy IT conds. More...

size_t	longestLabel (Iterator it) const noexcept
	Return the maximum number of chars of any label scanned by IT, or 0. More...

virtual std::string	labelText (size_t who) const
	Return a copy of the text of the WHO-th label. More...

Label &	label (size_t who)
	Return a reference to a modifiable label of the list. More...

bool	marked (size_t who, unsigned marking=0) const
	Return the marked state of label WHO in marking MARKING. More...

bool	visible (size_t who) const
	Return TRUE if that label is currently visible.

LabelList	sublist (const Indexes &inds) const
	Return the given sublist as a copy of the elements of this one. More...

bool	mark (size_t who, unsigned marking=0)
	Mark the WHO-th label, according to the mode of marks. More...

bool	markAll (unsigned marking=0)
	Mark all labels in marking or do nothing if the multiplicity forbids. More...

bool	unmark (size_t who, unsigned marking=0)
	Unmark the WHO-th label. More...

bool	unmarkAll (unsigned marking=0)
	Unmark all labels at marking MARKING. More...

void	toggle (size_t who, unsigned marking=0)
	Toggle the mark of WHO according to the mode of selections. More...

void	toggleAll (unsigned marking=0)
	Like toggle on all marks. More...

virtual void	setVisible (size_t who)
	Set that element to visible. More...

virtual void	setInvisible (size_t who)
	Set that element to invisible. More...

virtual void	toggleVisible (size_t who)
	Toggle visibility of the label WHO. More...

virtual void	clear (void)
	Clear the content of the entire list, markings and visibilities. More...

size_t	push_back (const Label &l)
	Insert an unmarked, visible label at the end of the list. More...

void	push_back (const Label::Vector &v)

virtual size_t	insert (const Label &l, size_t beforewho)
	Insert an unmarked, visible label before the given element. More...

void	insert (const Label::Vector &v, size_t beforewho)

virtual void	erase (size_t who)
	Erase the given element and its marks. More...

bool	eraseMarked (unsigned marking=0)
	Erase all elements marked in the given marking. Return TRUE if any. More...

void	append (const LabelList &oth)
	Append a copy of OTH to this.

void	append (LabelList &&oth)
	Move the content of OTH to the end of this.

virtual void	sort (char mode='A', std::vector< size_t > *order=nullptr)
	Sort all elements in the list, unregarding marks and visibility. More...

void	fillWithFiles (const std::filesystem::path &path={}, char mode='T', bool onlyfiles=false, std::vector< std::string > *entries=nullptr)
	Clear the list and fill it with the files and folders in PATH. More...

virtual std::string	to_string (void) const
	Return a (potentially long) text with all entries of the list and mrkrs. More...

Protected Member Functions
Observer	skipObserver (void)

void	retrieveObserver (const Observer &obs, char reason)

IndsRange	subtreeRange (size_t pos, bool withparent=true) const

size_t	parent (size_t pos) const

size_t	prevSibling (size_t pos) const

size_t	nextSibling (size_t pos) const

size_t	lastRoot (void) const

Protected Member Functions inherited from zxeco::gui::LabelList
void	copyFrom (const LabelList &oth)

void	moveFrom (LabelList &&oth)

Protected Attributes
std::string	chars_

std::vector< size_t >	depths_

Protected Attributes inherited from zxeco::gui::LabelList
Observer	obs_

bool	owner_

Label::Vector	labels_

std::vector< Marks >	markings_

Marks	visible_

LabelList *	sect_

IndsRange	sectrange_

Additional Inherited Members
Public Types inherited from zxeco::gui::LabelList
using	Observer = std::function< void(char)>

using	Indexes = std::vector< size_t >
	A set of unique absolute indexes on the list. More...

Static Public Attributes inherited from zxeco::gui::LabelList
static const Observer	kNullObserver
	An observer that does nothing. More...

Public Attributes inherited from zxeco::gui::LabelList
const std::string	kMarkingMultips
	Multiple selection mode of markings. More...

const size_t	kNumOfMarkings
	Number of independent markings for labels. More...

Protected Types inherited from zxeco::gui::LabelList
using	Marks = std::vector< bool >
	Marks that can be associated to labels in a given marking. More...

Constructor & Destructor Documentation

◆ LabelTree()

zxeco::gui::LabelTree::LabelTree	(	const std::string &	markingmultips,
		const Observer &	obs = `kNullObserver`
	)

Constructor: empty tree.

Parameters

obs	will be called every time a method call in this class modifies the list or marks.

Member Function Documentation

◆ clone()

LabelList * zxeco::gui::LabelTree::clone ( void ) const

inlineoverridevirtual

Clone operation for being overriden in derived classes to return them.

Reimplemented from zxeco::gui::LabelList.

Reimplemented in zxeco::gui::LabelDirBrowser.

Definition at line 778 of file ZXGUIGeneral.h.

◆ preffixChars()

const std::string & zxeco::gui::LabelTree::preffixChars ( void ) const

inlinenoexcept

Return the current preffixes used by labelText();.

Definition at line 780 of file ZXGUIGeneral.h.

◆ changePreffixChars()

void zxeco::gui::LabelTree::changePreffixChars ( const std::string & preffixchars )

Set the chars used as preffixes by labelText().

Parameters

preffixchars must contain a character for each of the special characters used in preffixes when returning a label text: 0-> an element with no parent; 1-> an element that has a parent and no siblings; 2-> an element that has a parent and siblings before but not after; 3-> an element that has a parent and siblings after but not before; 4-> an element that has a parent and siblings both after and before; 5-> to fill indentation; 6-> an element that has no children; 7-> an element that has children but it is not deployed; 8-> an element that has children and it is deployed.

◆ preffixForLabel()

virtual std::string zxeco::gui::LabelTree::preffixForLabel	(	size_t	who,
		size_t *	posdeploy = `nullptr`
	)		const

virtual

Return the preffix corresponding to that label.

If not null, fill *POSDEPLOY with the position in the preffix of the char used for deployments.

Reimplemented in zxeco::gui::LabelDirBrowser.

◆ labelText()

std::string zxeco::gui::LabelTree::labelText ( size_t who ) const

inlineoverridevirtual

< Return the label of the text including a preffix indicating the tree.

< The preffix will contain characters from the preffixchars argument of the constructor. In particular, the preffix will have as many indentation characters as its depth, then 1 character indicating whether the element has a parent (either no parent, parent and no siblings, parent and siblings before but no siblings after, parent and siblings after but not before, or parent and siblings both before and after), then 1 char indicating the existence of children (either no children, children that are deployed, or children not deployed).

Reimplemented from zxeco::gui::LabelList.

Definition at line 800 of file ZXGUIGeneral.h.

◆ depth()

size_t zxeco::gui::LabelTree::depth ( void ) const

Return the depth of the tree, i.e., the maximum depth in it.

Return 0 if the tree is empty, 1 if it has only 1 level, and so on. This is O(n).

◆ hasChildren()

bool zxeco::gui::LabelTree::hasChildren ( size_t parent ) const

inline

< Return whether the given element has any children.

< Throw if PARENT does not exist.

Definition at line 820 of file ZXGUIGeneral.h.

◆ firstBorn()

Indexes zxeco::gui::LabelTree::firstBorn ( size_t parent ) const

Return the set of indexes (ordered) for the firstborns of PARENT.

Only return the children that have 1 more depth than the parent. If PARENT is >= size of the tree, return the root nodes of the tree.

◆ subtree()

LabelTree zxeco::gui::LabelTree::subtree	(	size_t	parent,
		bool	withparent = `false`,
		Indexes *	indexmap = `nullptr`
	)		const

Return a tree copied from the subtree of PARENT, with or without it.

The markings are the same as in this tree but are all cleared in the new one. The observer is null. If INDEXMAP != nullptr, fill it with the indexes of each of the subtree labels in the original tree.

◆ insert()

size_t zxeco::gui::LabelTree::insert	(	const Label &	l,
		size_t	beforewho
	)

overridevirtual

Insert the new label previously to BEFOREWHO, with its same depth.

This is O(1). Return the position where L is in the list. If BEFOREWHO is the number of elements in the tree, insert the label as a sibling of the last one.

/note - push_back() adds siblings of the last element of the tree after that last element.

Reimplemented from zxeco::gui::LabelList.

◆ insert_child()

virtual size_t zxeco::gui::LabelTree::insert_child	(	const Label &	l,
		size_t	parent
	)

virtual

Insert the new label as the last child of PARENT, that must exist.

Return the position where the child has been inserted. This is O(n).

◆ erase()

void zxeco::gui::LabelTree::erase ( size_t who )

overridevirtual

Erase WHO and all its children, at all depths.

This is O(n).

Reimplemented from zxeco::gui::LabelList.

◆ setVisible()

void zxeco::gui::LabelTree::setVisible ( size_t who )

inlineoverridevirtual

< Set visibility for WHO and all its children.

< This is O(n).

Reimplemented from zxeco::gui::LabelList.

Definition at line 857 of file ZXGUIGeneral.h.

◆ setInvisible()

void zxeco::gui::LabelTree::setInvisible ( size_t who )

inlineoverridevirtual

< Unset visibility for WHO and all its children.

< This is O(n).

Reimplemented from zxeco::gui::LabelList.

Definition at line 862 of file ZXGUIGeneral.h.

◆ toggleVisible()

void zxeco::gui::LabelTree::toggleVisible ( size_t who )

inlineoverridevirtual

< Toggle visibility for WHO and all its children.

< This is O(n).

Reimplemented from zxeco::gui::LabelList.

Definition at line 867 of file ZXGUIGeneral.h.

◆ toggleFolding()

virtual void zxeco::gui::LabelTree::toggleFolding ( size_t who )

virtual

Toggle visibility of children of WHO for folding/unfolding it.

Reimplemented in zxeco::gui::LabelDirBrowser.

◆ sort()

void zxeco::gui::LabelTree::sort	(	char	mode = `'A'`,
		std::vector< size_t > *	order = `nullptr`
	)

overridevirtual

Do sort only if there is only one level in the tree; otherwise, throw.

Reimplemented from zxeco::gui::LabelList.

◆ clear()

void zxeco::gui::LabelTree::clear ( void )

overridevirtual

Clear the content of the entire list, markings and visibilities.

Reimplemented from zxeco::gui::LabelList.

Reimplemented in zxeco::gui::LabelDirBrowser.

◆ to_string()

std::string zxeco::gui::LabelTree::to_string ( void ) const

overridevirtual

Return a (potentially long) text with all entries of the list and mrkrs.

Reimplemented from zxeco::gui::LabelList.

Member Data Documentation

◆ chars_

std::string zxeco::gui::LabelTree::chars_

protected

Definition at line 889 of file ZXGUIGeneral.h.

◆ depths_

std::vector<size_t> zxeco::gui::LabelTree::depths_

protected

Definition at line 890 of file ZXGUIGeneral.h.

◆ zxeco::gui::LabelTree::DepthFirstInserter

class zxeco::gui::LabelTree::DepthFirstInserter

Inserter of elements into the tree structure.

For more confortable and readable insertions than using the insert(), insert_child() and push_back() methods.

Definition at line 726 of file ZXGUIGeneral.h.

Public Member Functions
	DepthFirstInserter (LabelTree &lt, size_t parentpos=0)
	Constructor to insert elements as subtree of PARENTPOS in LT. More...

size_t	add (const Label &l)
	Add the given element as another child of the current parent. More...

void	add (const Label::Vector &v)
	Add each of the elements in V in that order. More...

void	openSubtree (void)
	Make the last added element a parent of a new subtree.

void	closeSubtree (void)
	Close the last parent and consider its parent as the new one. More...

Constructor & Destructor Documentation

◆ DepthFirstInserter()

zxeco::gui::LabelTree::DepthFirstInserter::DepthFirstInserter	(	LabelTree &	lt,
		size_t	parentpos = `0`
	)

inline

Constructor to insert elements as subtree of PARENTPOS in LT.

If PARENTPOS >= size of LT, elements will be added either as siblings of the last element in the tree (if any) or as top-level-siblings (if the tree is empty), until a subtree is opened.

Definition at line 730 of file ZXGUIGeneral.h.

Member Function Documentation

◆ add() [1/2]

size_t zxeco::gui::LabelTree::DepthFirstInserter::add ( const Label & l )

Add the given element as another child of the current parent.

Return the index in the tree of the inserted element. If it is the first insertion of this inserter, either there is no current parent set in the constructor (then L will become the current parent and will be created as indicated in the constructor) or there is (then L will become a child of it and the current parent will be unchanged).

◆ add() [2/2]

void zxeco::gui::LabelTree::DepthFirstInserter::add ( const Label::Vector & v )

inline

Add each of the elements in V in that order.

Definition at line 747 of file ZXGUIGeneral.h.

◆ closeSubtree()

void zxeco::gui::LabelTree::DepthFirstInserter::closeSubtree ( void )

Close the last parent and consider its parent as the new one.

If no more closing can be done, do nothing.

◆ zxeco::gui::LabelDirBrowser

class zxeco::gui::LabelDirBrowser

A tree of labels that correspond to the entries in a directory tree.

< The visibility of the labels are made private in this class to avoid erroneous manipulations, as well as insertion / deletion of elements.

Definition at line 921 of file ZXGUIGeneral.h.

Inheritance diagram for zxeco::gui::LabelDirBrowser:

[legend]

Collaboration diagram for zxeco::gui::LabelDirBrowser:

[legend]

Public Member Functions
	LabelDirBrowser (const std::string &markingmultips, const Observer &obs=kNullObserver)
	Constructor. Empty directory. More...

	LabelDirBrowser (const LabelDirBrowser &oth)

	LabelDirBrowser (LabelDirBrowser &&oth)

LabelDirBrowser &	operator= (const LabelDirBrowser &oth)

LabelDirBrowser &	operator= (LabelDirBrowser &&oth)

LabelList *	clone (void) const override
	Clone operation for being overriden in derived classes to return them. More...

void	clear (void)
	Clear the entire content of the tree. More...

size_t	readStartingPath (const std::filesystem::path &p)
	Clear the content of the list and fill it with the 1st level dirs in P. More...

std::string	preffixForLabel (size_t who, size_t *posdeploy=nullptr) const override
	Return the preffix corresponding to that label (see LabelTree). More...

std::filesystem::path	absolutePath (size_t who) const
	Return the absolute path in the disk corresponding to the WHO label.

bool	isParent (size_t who) const
	Return TRUE if the given index is the parent directory of the tree.

void	toggleFolding (size_t who) override
	Fold or unfold the given parent directory. More...

Public Member Functions inherited from zxeco::gui::LabelTree
	LabelTree (const std::string &markingmultips, const Observer &obs=kNullObserver)
	Constructor: empty tree. More...

	LabelTree (const LabelTree &oth)

	LabelTree (LabelTree &&oth)

LabelTree &	operator= (const LabelTree &oth)

LabelTree &	operator= (LabelTree &&oth)

LabelList *	clone (void) const override
	Clone operation for being overriden in derived classes to return them. More...

const std::string &	preffixChars (void) const noexcept
	Return the current preffixes used by labelText();. More...

void	changePreffixChars (const std::string &preffixchars)
	Set the chars used as preffixes by labelText(). More...

virtual std::string	preffixForLabel (size_t who, size_t *posdeploy=nullptr) const
	Return the preffix corresponding to that label. More...

std::string	labelText (size_t who) const override
	< Return the label of the text including a preffix indicating the tree. More...

size_t	depth (size_t pos) const
	Return the depth of the given element in the tree (from 0 for root).

size_t	depth (void) const
	Return the depth of the tree, i.e., the maximum depth in it. More...

bool	hasChildren (size_t parent) const
	< Return whether the given element has any children. More...

Indexes	firstBorn (size_t parent) const
	Return the set of indexes (ordered) for the firstborns of PARENT. More...

LabelTree	subtree (size_t parent, bool withparent=false, Indexes *indexmap=nullptr) const
	Return a tree copied from the subtree of PARENT, with or without it. More...

size_t	insert (const Label &l, size_t beforewho) override
	Insert the new label previously to BEFOREWHO, with its same depth. More...

virtual size_t	insert_child (const Label &l, size_t parent)
	Insert the new label as the last child of PARENT, that must exist. More...

void	erase (size_t who) override
	Erase WHO and all its children, at all depths. More...

virtual void	erase_children (size_t who)
	Erase all children of WHO, at all depths, if any.

void	setVisible (size_t who) override
	< Set visibility for WHO and all its children. More...

void	setInvisible (size_t who) override
	< Unset visibility for WHO and all its children. More...

void	toggleVisible (size_t who) override
	< Toggle visibility for WHO and all its children. More...

virtual void	changeVisibilityDepth (size_t fromdepth, bool visib)
	Set visibility to VISIB for all elements with depth >= FROMDEPTH.

virtual void	toggleFolding (size_t who)
	Toggle visibility of children of WHO for folding/unfolding it. More...

void	sort (char mode='A', std::vector< size_t > *order=nullptr) override
	Do sort only if there is only one level in the tree; otherwise, throw. More...

void	clear (void) override
	Clear the content of the entire list, markings and visibilities. More...

std::string	to_string (void) const override
	Return a (potentially long) text with all entries of the list and mrkrs. More...

Public Member Functions inherited from zxeco::gui::LabelList
	LabelList (const std::string &markingmultips, const Observer &obs=kNullObserver)
	Constructor: empty list and marks. More...

	LabelList (LabelList &oth, size_t begin, size_t length, const Observer &obs=kNullObserver) noexcept
	Constructor: sublist taken from indexes [begin,begin+length) from OTH. More...

	LabelList (const Label::Vector &labels, const std::string &markingmultips, const Observer &obs=kNullObserver)
	Constructor from a vector of labels.

	LabelList (const LabelList &oth)

	LabelList (LabelList &&oth)
	Move constructor eaves OTH in undefined state if OTH has no ownership.

LabelList &	operator= (const LabelList &oth)

LabelList &	operator= (LabelList &&oth)
	Move copy leaves OTH in undefined state if OTH has no ownership.

virtual	~LabelList (void)
	Destructor. More...

virtual LabelList *	clone (void) const
	Clone operation for being overriden in derived classes to return them. More...

void	checkMarking (unsigned marking) const
	If the given marking is not valid for the current list, throw.

void	checkIndex (size_t who) const
	If the given index is not valid in the current list, throw.

size_t	size (void) const noexcept
	Return the current number of labels in the list, either visible or not. More...

bool	empty (void) const noexcept
	Return TRUE if the list is empty (O(1)). More...

CharArea	areaForEntireList (void) const
	Return the area in chars that the visible items of the list would occpy. More...

const Observer &	observer (void) const noexcept
	Return a reference to the current observer. More...

void	changeObserver (const Observer &obs)
	Change the current observer by OBS. More...

Iterator	begin (uint8_t conditions=Iterator::IT_ALL, unsigned marking=0) const
	Return an iterator to iterate in that fashion, pointing to beginning. More...

Iterator	end (void) const
	Return an iterator pointing to the end of the list. More...

size_t	sizeByIterator (Iterator it) const noexcept
	Return the current number of labels in the list that satisfy IT conds. More...

size_t	longestLabel (Iterator it) const noexcept
	Return the maximum number of chars of any label scanned by IT, or 0. More...

virtual std::string	labelText (size_t who) const
	Return a copy of the text of the WHO-th label. More...

Label &	label (size_t who)
	Return a reference to a modifiable label of the list. More...

bool	marked (size_t who, unsigned marking=0) const
	Return the marked state of label WHO in marking MARKING. More...

bool	visible (size_t who) const
	Return TRUE if that label is currently visible.

LabelList	sublist (const Indexes &inds) const
	Return the given sublist as a copy of the elements of this one. More...

bool	mark (size_t who, unsigned marking=0)
	Mark the WHO-th label, according to the mode of marks. More...

bool	markAll (unsigned marking=0)
	Mark all labels in marking or do nothing if the multiplicity forbids. More...

bool	unmark (size_t who, unsigned marking=0)
	Unmark the WHO-th label. More...

bool	unmarkAll (unsigned marking=0)
	Unmark all labels at marking MARKING. More...

void	toggle (size_t who, unsigned marking=0)
	Toggle the mark of WHO according to the mode of selections. More...

void	toggleAll (unsigned marking=0)
	Like toggle on all marks. More...

virtual void	setVisible (size_t who)
	Set that element to visible. More...

virtual void	setInvisible (size_t who)
	Set that element to invisible. More...

virtual void	toggleVisible (size_t who)
	Toggle visibility of the label WHO. More...

virtual void	clear (void)
	Clear the content of the entire list, markings and visibilities. More...

size_t	push_back (const Label &l)
	Insert an unmarked, visible label at the end of the list. More...

void	push_back (const Label::Vector &v)

virtual size_t	insert (const Label &l, size_t beforewho)
	Insert an unmarked, visible label before the given element. More...

void	insert (const Label::Vector &v, size_t beforewho)

virtual void	erase (size_t who)
	Erase the given element and its marks. More...

bool	eraseMarked (unsigned marking=0)
	Erase all elements marked in the given marking. Return TRUE if any. More...

void	append (const LabelList &oth)
	Append a copy of OTH to this.

void	append (LabelList &&oth)
	Move the content of OTH to the end of this.

virtual void	sort (char mode='A', std::vector< size_t > *order=nullptr)
	Sort all elements in the list, unregarding marks and visibility. More...

void	fillWithFiles (const std::filesystem::path &path={}, char mode='T', bool onlyfiles=false, std::vector< std::string > *entries=nullptr)
	Clear the list and fill it with the files and folders in PATH. More...

virtual std::string	to_string (void) const
	Return a (potentially long) text with all entries of the list and mrkrs. More...

Additional Inherited Members
Public Types inherited from zxeco::gui::LabelList
using	Observer = std::function< void(char)>

using	Indexes = std::vector< size_t >
	A set of unique absolute indexes on the list. More...

Static Public Attributes inherited from zxeco::gui::LabelList
static const Observer	kNullObserver
	An observer that does nothing. More...

Public Attributes inherited from zxeco::gui::LabelList
const std::string	kMarkingMultips
	Multiple selection mode of markings. More...

const size_t	kNumOfMarkings
	Number of independent markings for labels. More...

Protected Types inherited from zxeco::gui::LabelList
using	Marks = std::vector< bool >
	Marks that can be associated to labels in a given marking. More...

Protected Member Functions inherited from zxeco::gui::LabelTree
Observer	skipObserver (void)

void	retrieveObserver (const Observer &obs, char reason)

IndsRange	subtreeRange (size_t pos, bool withparent=true) const

size_t	parent (size_t pos) const

size_t	prevSibling (size_t pos) const

size_t	nextSibling (size_t pos) const

size_t	lastRoot (void) const

Protected Member Functions inherited from zxeco::gui::LabelList
void	copyFrom (const LabelList &oth)

void	moveFrom (LabelList &&oth)

Protected Attributes inherited from zxeco::gui::LabelTree
std::string	chars_

std::vector< size_t >	depths_

Protected Attributes inherited from zxeco::gui::LabelList
Observer	obs_

bool	owner_

Label::Vector	labels_

std::vector< Marks >	markings_

Marks	visible_

LabelList *	sect_

IndsRange	sectrange_

Constructor & Destructor Documentation

◆ LabelDirBrowser()

zxeco::gui::LabelDirBrowser::LabelDirBrowser	(	const std::string &	markingmultips,
		const Observer &	obs = `kNullObserver`
	)

Constructor. Empty directory.

Parameters

obs	will be called every time a method call in this class modifies the list or marks.

Member Function Documentation

◆ clone()

LabelList * zxeco::gui::LabelDirBrowser::clone ( void ) const

inlineoverridevirtual

Clone operation for being overriden in derived classes to return them.

Reimplemented from zxeco::gui::LabelTree.

Definition at line 936 of file ZXGUIGeneral.h.

◆ clear()

void zxeco::gui::LabelDirBrowser::clear ( void )

virtual

Clear the entire content of the tree.

Reimplemented from zxeco::gui::LabelTree.

◆ readStartingPath()

size_t zxeco::gui::LabelDirBrowser::readStartingPath ( const std::filesystem::path & p )

Clear the content of the list and fill it with the 1st level dirs in P.

If P does not exist, only clear the tree. Return the index in the list of P, or size() if none.

Parameters

p	is the path from which the directories must be read. Only the 1st level directories within P are read. The tree is formed by adding first a parent path to go up P, if any. If P is empty, the current dir is used. To use the root path, pass std::filesystem::current_path().root_path().

◆ preffixForLabel()

std::string zxeco::gui::LabelDirBrowser::preffixForLabel	(	size_t	who,
		size_t *	posdeploy = `nullptr`
	)		const

overridevirtual

Return the preffix corresponding to that label (see LabelTree).

If not null, fill *POSDEPLOY with the position in the preffix of the char used for deployments.

Reimplemented from zxeco::gui::LabelTree.

◆ toggleFolding()

void zxeco::gui::LabelDirBrowser::toggleFolding ( size_t who )

overridevirtual

Fold or unfold the given parent directory.

If WHO has children, unfold it; otherwise, fold it. Folding involves to erase its children. Unfolding involves to re-read directory children.

Reimplemented from zxeco::gui::LabelTree.

Macro Definition Documentation

◆ ZXGUIVER

#define ZXGUIVER "3.0.0"

#include <ZXGUIGeneral.h>

Version of the GUI sublibrary.

Definition at line 24 of file ZXGUIGeneral.h.

Description

Namespaces

Classes

Macros

Class Documentation

◆ zxeco::gui::WinColors

Static Public Attributes

Public Attributes

Public Member Functions

Member Function Documentation

◆ attrForBackground()

◆ setTitleColorsFor()

◆ setBackgroundColorsFor()

◆ setMainColorsFor()

◆ setDecorColorsFor()

◆ setTypingColorsFor()

◆ setCursorColorsFor()

◆ to_string()

Member Data Documentation

◆ kLight

◆ kDark

◆ title

◆ backpaper

◆ mainink

◆ maindisink

◆ decink

◆ decdisink

◆ typingpaper

◆ typingdispaper

◆ typingmarkpaper

◆ cursor

◆ tooltip

◆ zxeco::gui::TypingZone

Public Member Functions

Constructor & Destructor Documentation

◆ TypingZone()

Member Function Documentation

◆ set()

◆ get()

◆ move()

◆ zxeco::gui::Label

Public Types

Public Member Functions

Member Typedef Documentation

◆ Vector

Constructor & Destructor Documentation

◆ Label() [1/3]

◆ Label() [2/3]

◆ Label() [3/3]

Member Function Documentation

◆ set() [1/2]

◆ set() [2/2]

◆ get()

◆ zxeco::gui::LabelList

Public Types

Static Public Attributes

Public Attributes

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Member Typedef Documentation

◆ Observer

◆ Indexes

◆ Marks

Constructor & Destructor Documentation

◆ LabelList() [1/2]

◆ LabelList() [2/2]

◆ ~LabelList()

Member Function Documentation

◆ clone()

◆ size()

◆ empty()

◆ areaForEntireList()

◆ observer()

◆ changeObserver()

◆ begin()

◆ end()

◆ sizeByIterator()

◆ longestLabel()
